24kV Cirifka Rakaabka ah ee SF6 Load Break Switch

Model:FLW34-24

Anqiang Power waa bixiye Shiinees ah oo ka kooban 24KV tiir ku rakiban furayaasha SF6. Dareeraha culeyska culeyska ee SF6 ku rakiban yahay wuxuu ku habboon yahay korantada la qiimeeyay ee 11KV, 24KV, iyo 33KV, oo leh hadda lagu qiimeeyay 630A iyo inta jeer ee lagu qiimeeyay 50/60Hz. Waan u habeyn karnaa oo horumarin karnaa alaabooyinka iyadoo loo eegayo shuruudaha cabbirka awoodda isticmaale.

Soo dir weydiin

Sharaxaada Alaabta

Tiirka 24KV wuxuu ku rakiban yahay furaha jebinta culeyska SF6, moodelka FLW34-24/630-20, waxaa loogu talagalay beddelidda iyo kala goynta xawliga culeyska iyo qulqulka xad-dhaafka ah ee shabakadaha qaybinta korontada, wuxuuna si toos ah go'doomin karaa qaybaha khadadka korontada. 24kV Cirifka Rakaabka ah ee SF6 Load Break Switch waxa lagu shaqayn karaa gacan, koronto, ama meel fog. Koontaroolaha elegtarooniga ah waxa uu ku yaalaa meel bir ah oo aan lahayn, kuna haboon xaalad cimiloeed oo kala duwan, waxana uu dejin karaa fiilo iyo modem-ka wireless-ka ee kontoroolka fog. Naqshadeeda fudud ee tiirarka ku dhejisan waxay hubisaa in si fudud oo degdeg ah loo rakibo, yaraynta kharashka dhismaha.

Nooca Alaabta

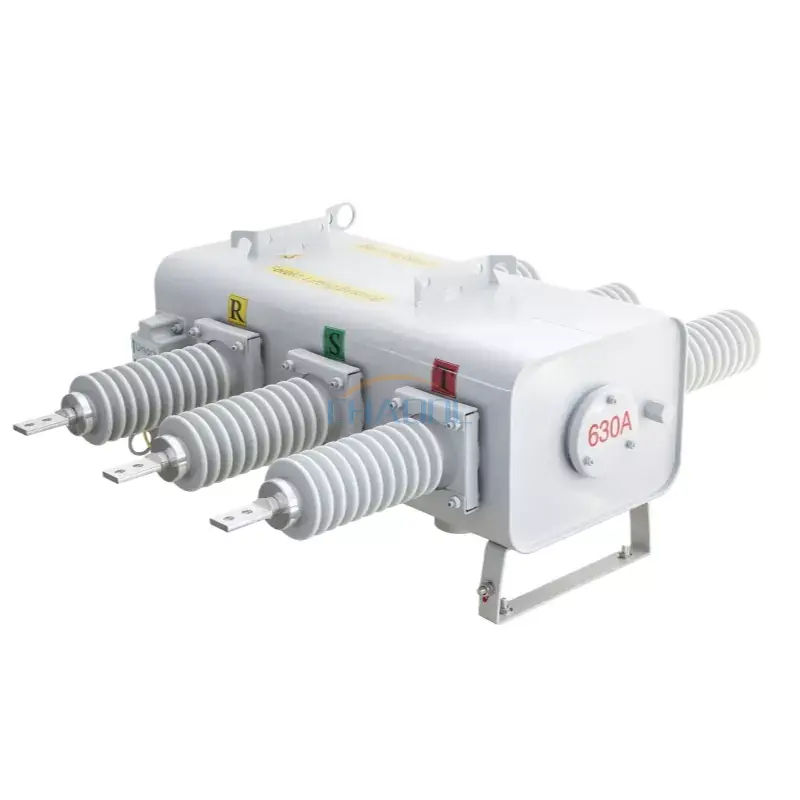

1.Ceramic bushing, fiilada caaryada leh.

24kV Pole Mounted SF6 Load Break Switch

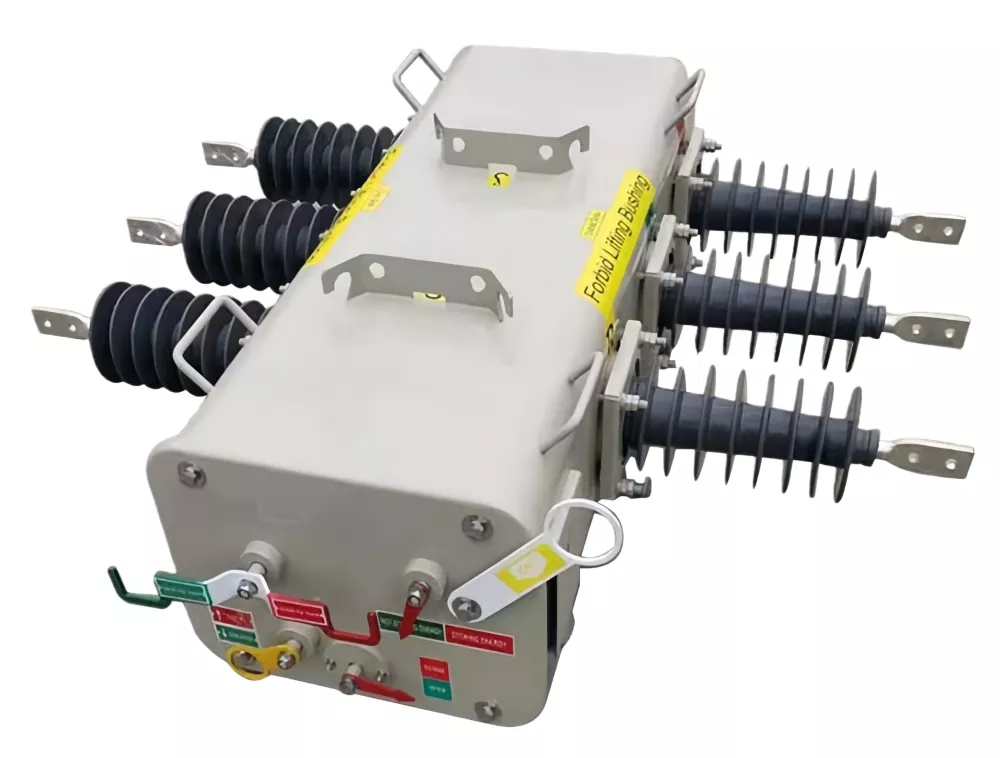

2. Gacan-kaceedka caagga ah ee isku-dhafan, oo leh xargaha xargaha ee wax-soo-saarka.

24kV Pole Mounted SF6 Load Break Switch

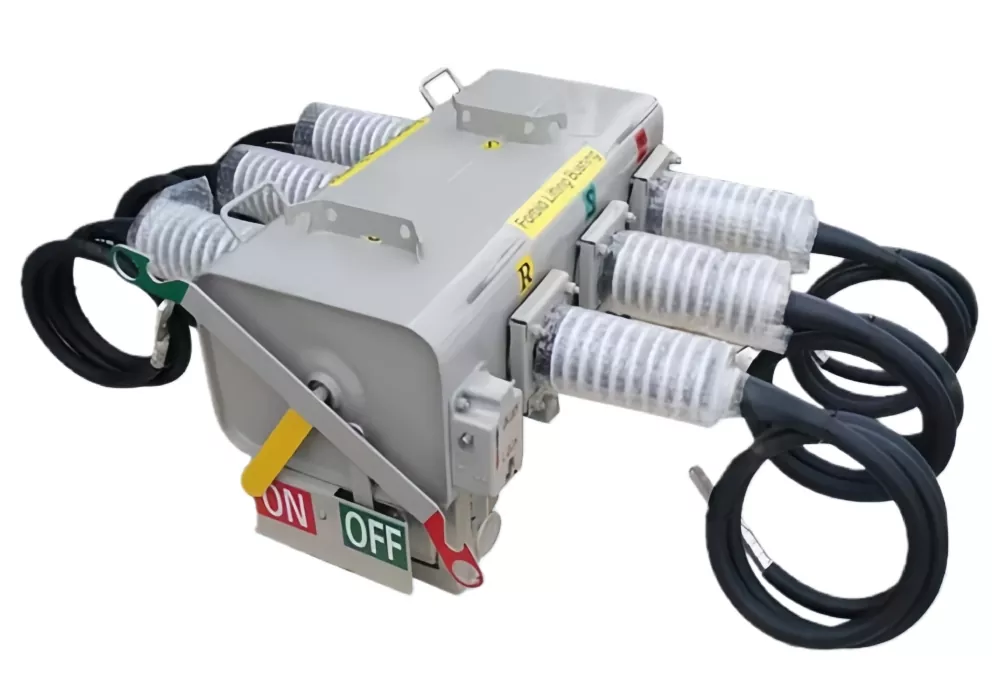

3.Sleeve Ceramic, xirmooyinka fiilooyinka ee isku xirka wax soo saarka.

24kV Pole Mounted SF6 Load Break Switch

Qiyaasaha Farsamada

danab lagu qiimeeyay	11/24/33KV
Awood la qiimeeyay	5060Hz
Hadda la qiimeeyay	630A
Jabinta hadda la qiimeeyay (0.05MPa/20℃)	630A
U adkaysiga ugu sarreeya	50kA
Lagu qiimeeyay xidhitaanka wakhtiga gaaban	50kA
Lagu qiimeeyay adkaysiga wakhtiga gaaban	20/4KA/s
Ku dallacida fiilada la qiimeeyay iyo jabinta hadda	25A
Khadka lagu dallacay iyo jabinta hadda	16A
Lagu qiimeeyay qulqulka qulqulka xidhan	630A
Hadda kacsan	21A
Lagu qiimeeyay wareegyada jebinta hadda	≥400 jeer
Heerka daadinta gaaska qaraabada ah	≤1% sanadkii
Qoyaanka gaasta SF6 ee wareejinta warshadda	≤150pm
Qoyaanka gaasta SF6 beddelka qiimaha hawlgalka	≤300pm
Hawlgalka xasiloonida makaanikada	6000 jeer
Danab shaqaynaya oo la qiimeeyay iyo kaaliyaha wareegga lagu qiimeeyay	DC220/110/48/24 AC220/110
Heerarka iyo qiimaynta ilaalinta xakamaynta	IP44

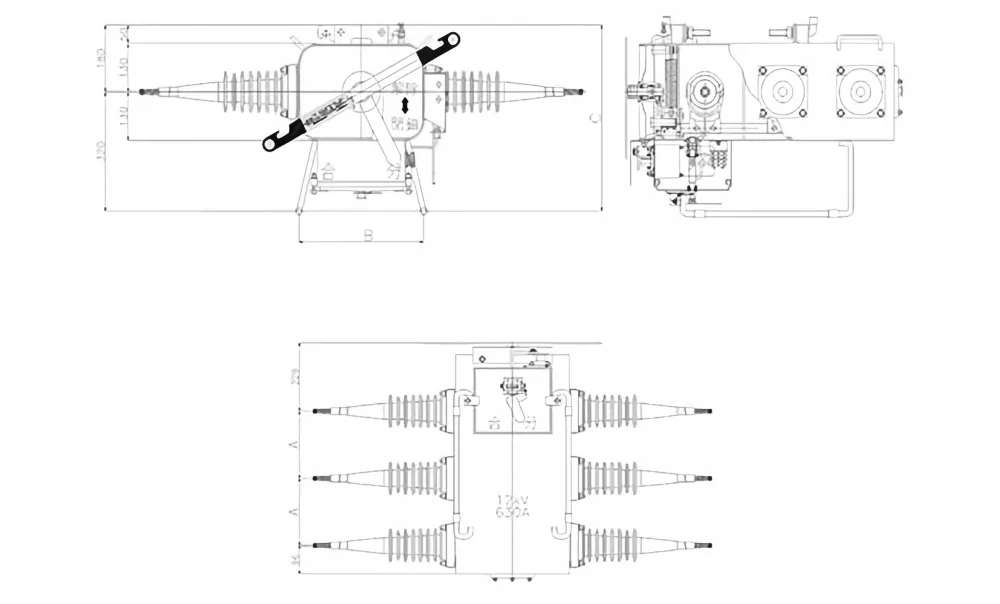

Cabirka alaabta

24kV Pole Mounted SF6 Load Break Switch

Cabirka dibadda (mm)				Cabbirrada rakibidda (mm)	Masaafada gurguurta ee baadiyaha (mm)
	A	B	C	W*H
11KV	250	435	500	500*290	556
24KV	300	435	500	500*290	840
33KV	350	435	500	700*290	1250
