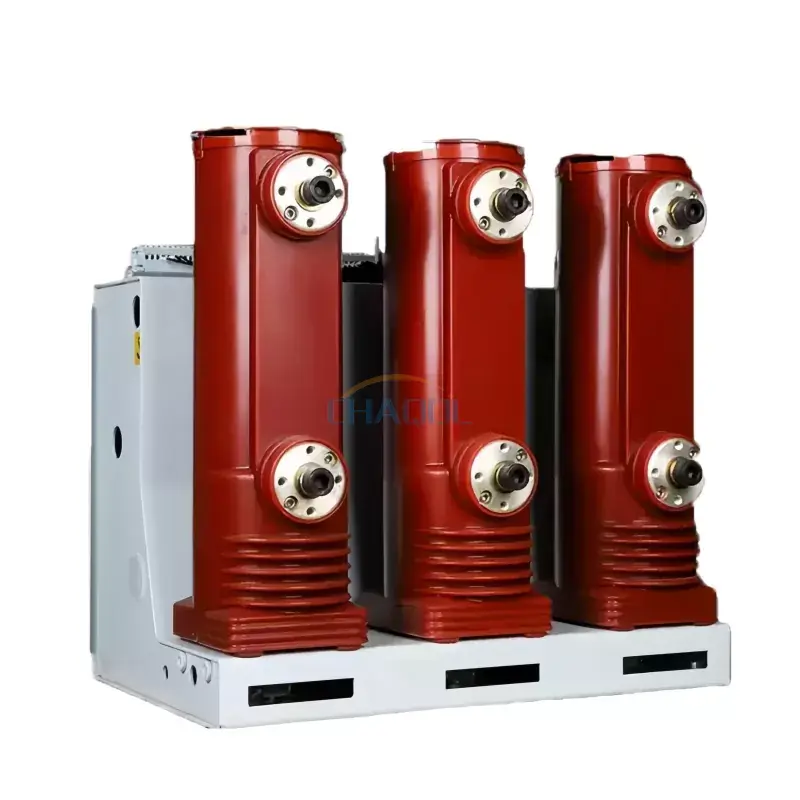

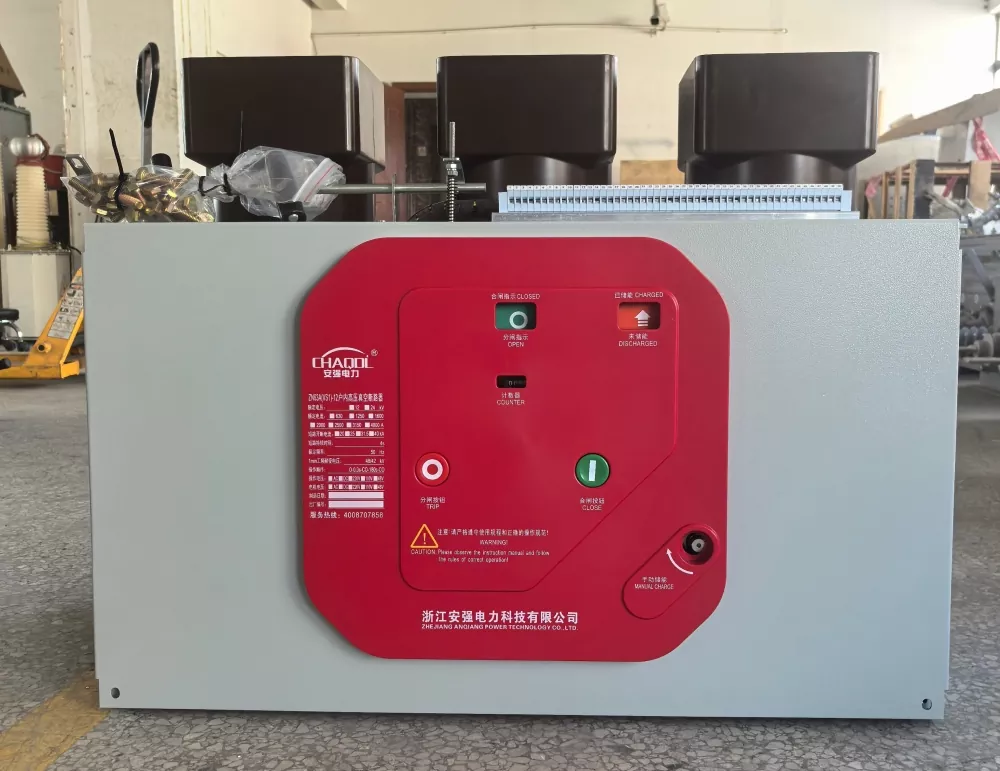

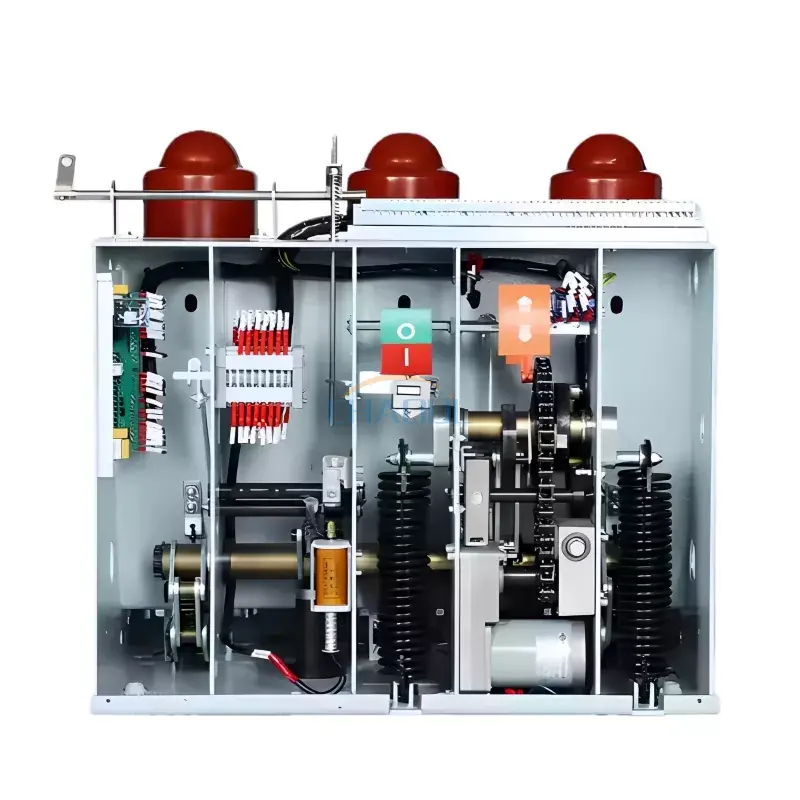

17.5KV nooca go'an ee wareegga gudaha gudaha wuxuu qaataa naqshad isku dhafan oo ah habka hawlgalka VET iyo jabiyaha wareegga. Qaar ka mid ah wareegyada muhiimka ah waxay isticmaali karaan tiirar si buuxda u xiran si ay u gaaraan yaraynta, isku halaynta sare, iyo dayactir la'aanta dayactirka wareegga wareegga. Wareegtada wareegtada waxaa guud ahaan loo adeegsadaa qalabka birta ah ee la bixi karo waxaana sidoo kale loo isticmaali karaa nooca sanduuqa XGN ee gudaha gudaha biraha ku xiran
|
danab lagu qiimeeyay |
12/17.5KV |
|
Inta jeer ee la qiimeeyay |
50Hz |
|
Hilaaca la qiimeeyay ee u adkaysta danabka (qiimaha ugu sarreeya) |
75kV |
|
La qiimeeyay inta jeer ee tamarta wakhtiga gaaban u adkeysaneysa danab (1 daqiiqo) |
42kV |
|
Hadda la qiimeeyay |
630/1250A |
|
Lagu qiimeeyay qulqulka wareega-gaaban |
20/25kA |
|
Sida loo shaqeeyo |
O～0.3s-CO-180s-CO |
|
La qiimeeyay hal/dib-u-dhac capacitor bangi jabinaya hadda |
630/400A |
|
Lagu qiimeeyay jabinta wareega gaaban ee hadda iyo tirada hawlgallada goynta |
30 jeer |
|
Waqtiga xidhitaanka |
35-70ms |
|
Waqtiga furitaanka (ee wareegga wareegga) |
20-50ms |
|
Nolosha makaanikada |
10,000 jeer |
|
Awoodda kaydinta tamarta la qiimeeyay iyo danab shaqaynaysa |
AC220/110 DC220/110 |
|
Daminta iyo daminta saddexda weji isku mar maaha. |
≤ 2 ms |
|
Iska caabbinta wareegga korontada ee ugu weyn |
≤ 50(630A)≤45(1250A) |
1. Heerkulka shaqada: -10℃ ilaa 40℃ (kaydinta iyo gaadiidka waa la ogolyahay -30℃)
2. Joog: aan ka badnayn 1000m
3. Qoyaanka qaraabada: celceliska maalinlaha ah oo aan ka badnayn 95%
4. 17.5KV Nooca Go'an ee Gudaha Wareega Gudbinta wuxuu ku habboon yahay meelaha leh xoogga dhulgariirka oo aan ka badnayn cabbirka 8, oo ka madax bannaan dabka, qaraxa, daxalka kiimikada, iyo gariirka daran.
