36kV Indoor High Voltage circuit jabiyaha

Model:ZN85-40.5

36kV Indoor High Voltage Circuit Breaker waa qalabka gudaha ee korantada sare si madax banaan u soo saartay Anqiang Power. Waxay ku habboon tahay nidaamyada saddex-waji ee AC 50Hz. Wareegtada wareegtadu waxa ay leedahay nakhshad qaabaysan, waxa ay ku qalabaysan tahay hab hawleedka guga, waxana ay taageertaa kaydinta tamarta korantada ama gacanta. Waxay si gaar ah ugu habboon tahay qalabka beddelka ee go'an ama lagala bixi karo (KYN61-40.5).

Soo dir weydiin

Sharaxaada Alaabta

Qaabka wax soo saarka ee 36KV gudaha gudaha korantada sare ee wareegga wareegga waa ZN85-40.5. Noocan cusub ee wareegga wareegga wuxuu leeyahay habka hawlgalka guga ee lagu rakibay gudaha wareegga wareegga, taasoo ka dhigaysa mid ku habboon korka toosan. Naqshadeeda qaabdhismeed ee fudud waxay si wax ku ool ah u yaraynaysaa qoto-dheeraanta wareegtada. Waxaa loo isticmaali karaa warshadaha iyo warshadaha macdanta, warshadaha korontada, iyo substations loogu beddelo load hadda, xad-dhaaf ah hadda, iyo qaladka hadda.

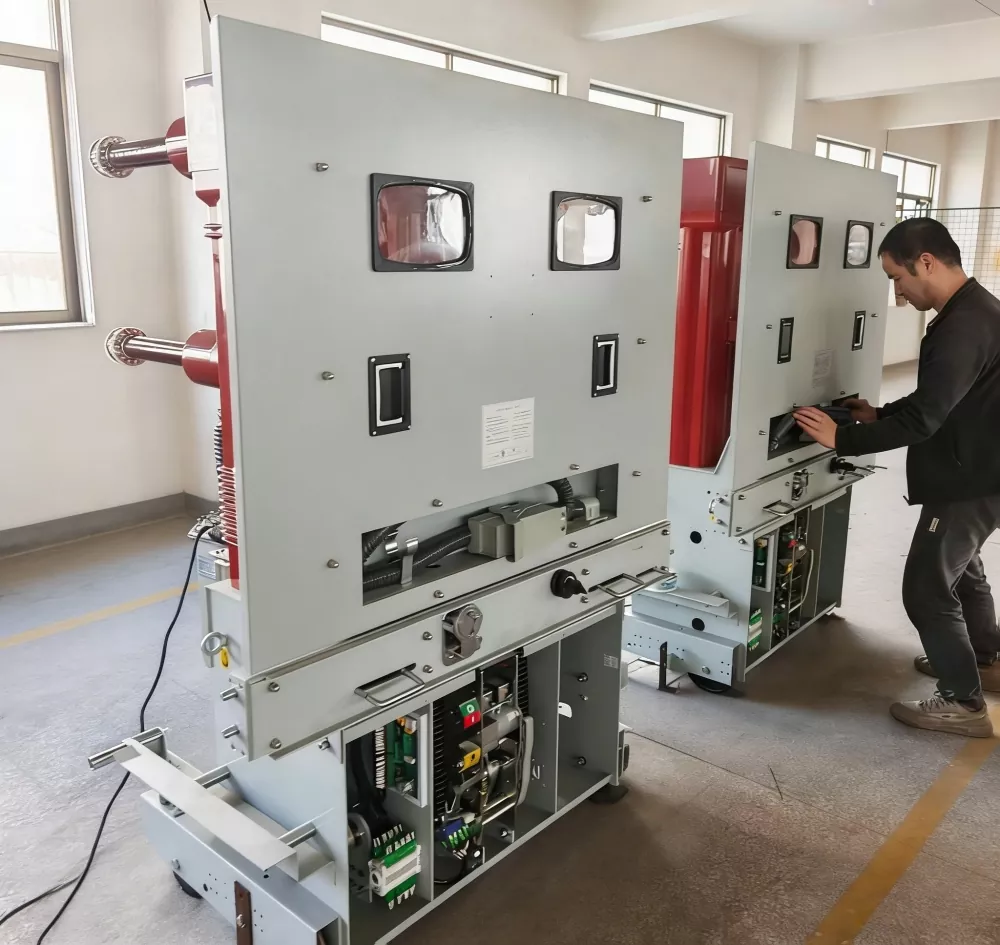

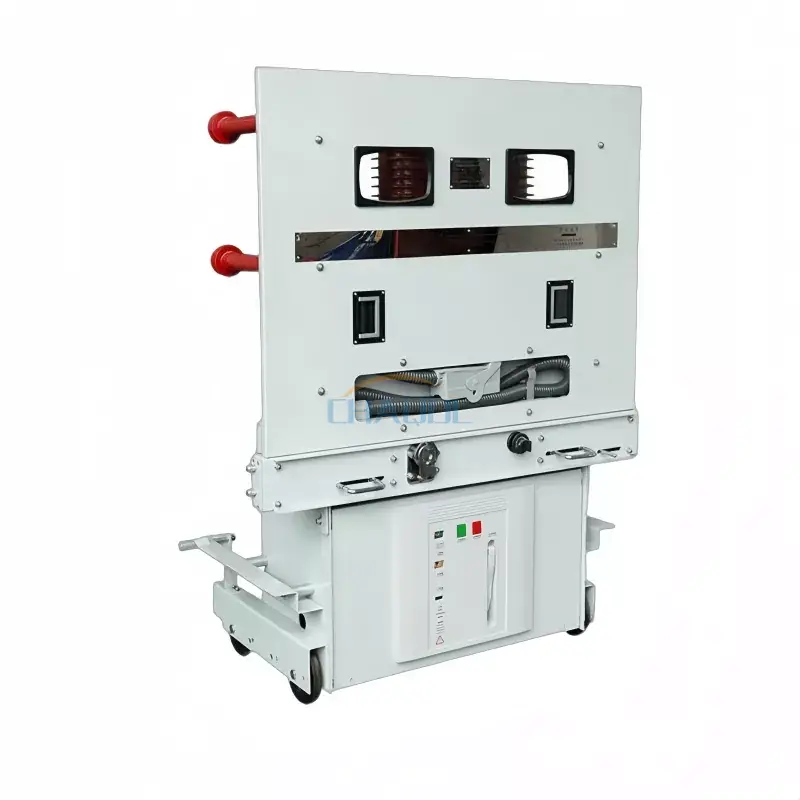

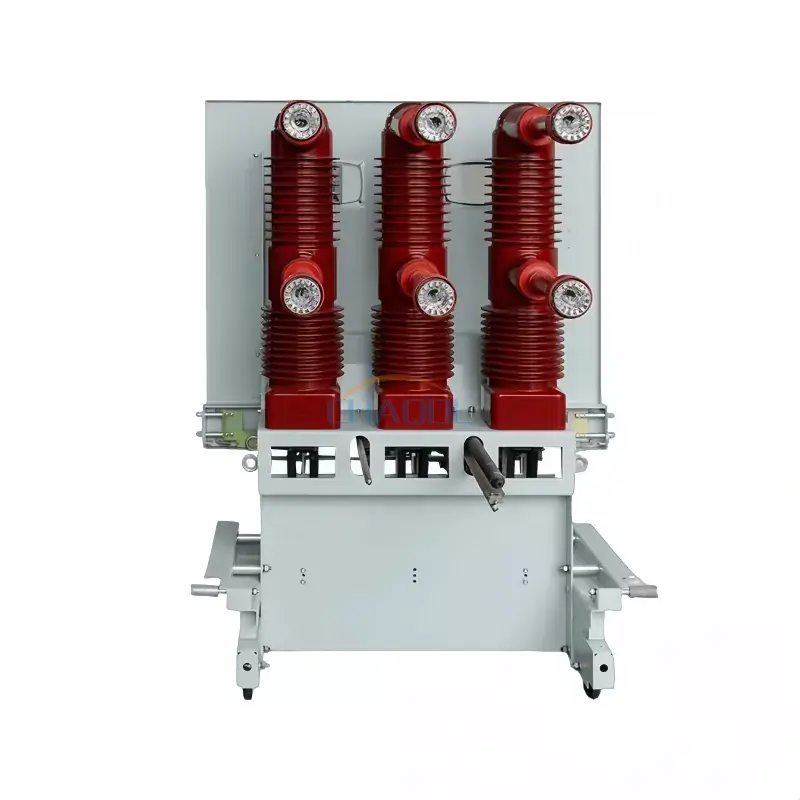

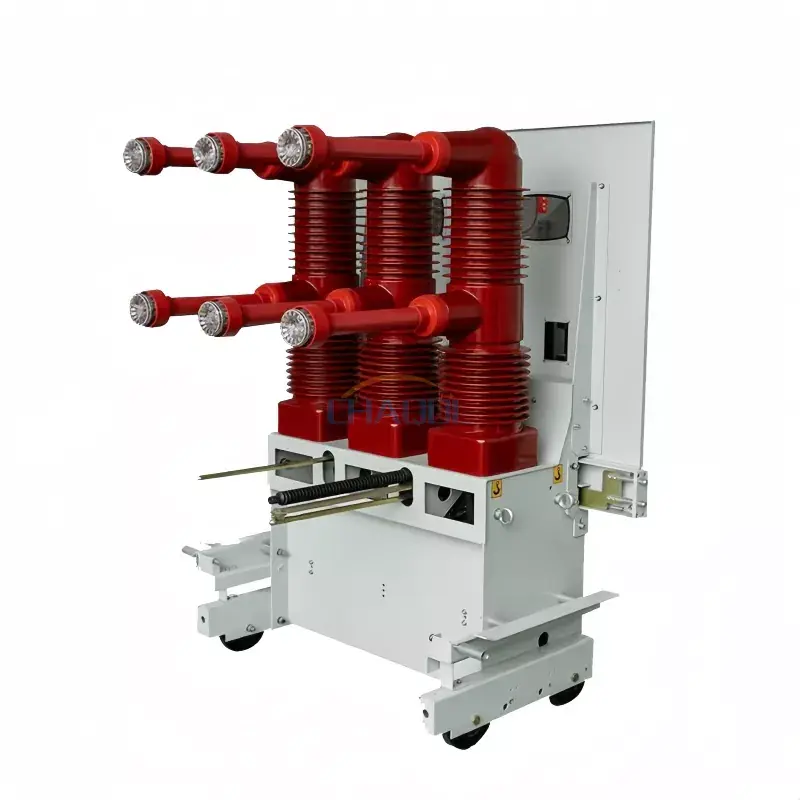

Sawirada alaabta

36kV Indoor High Voltage Circuit Breaker

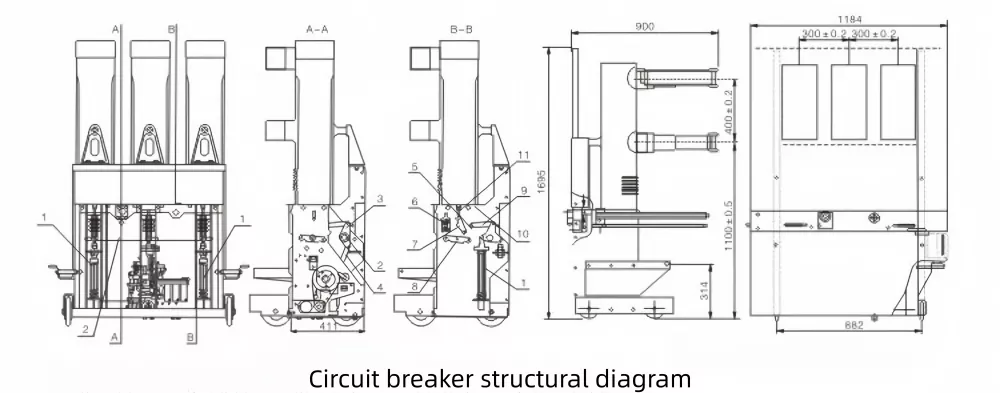

jaantuska cabbirka alaabta

36kV Indoor High Voltage Circuit Breaker

1. Furitaanka guga

2. Usha ugu weyn

3. cududda cirifka dhexe

4. Usha gudbinta

5. Saxanka isku xirka gudbinta

6. Guga xidhiidhka

7/8/9. Taarikada isku xirka gudbinta

10. cududda cirifka dhinaceeda

11. Usha dhamaadka dhalista wareega

Qiyaasaha Farsamada

Magaca Mashruuca	Qiimaha cabbirka
danab lagu qiimeeyay	36/40.5 kV
Inta jeer ee la qiimeeyay	50 Hz
Hadda la qiimeeyay	1250/1600/2000 A
Lagu qiimeeyay adkaysiga wakhtiga gaaban	25/31.5 kA
Heerka ugu sarreeya ee u adkeysiga hadda	63/80 kA
Lagu qiimeeyay muddada wareegga gaaban	4 s
Lagu qiimeeyay qulqulka wareega-gaaban	25/31.5 kA
Lagu qiimeeyay samaynta wareega gaaban	63/80 kA
Sida loo shaqeeyo	O-0.3s-CO-180s-CO
Waqtiga furitaanka	<80 ms
Lagu qiimeeyay jabinta wareega gaaban ee hadda iyo tirada hawlgallada goynta	20 jeer
Jebinta hadda ee hal bank capacitor	630 A
Dib-u-soo-celinta capacitor bangi beddelka hadda	400 A
1-daqiiqo inta jeer ee awoodda u adkeysanaysa tijaabada tamarta	95 kV
Hilaaca hillaaca u adkaysta danab	185 kV
Nolosha makaanikada	10,000 jeer

Tilmaamaha Alaabta

1. 36kV Indoor High Voltage Circuit Breaker wuxuu qaataa naqshad isku dhafan oo leh qolka vacuum-ka joojiya xagga sare iyo habka hawlgalka ee hoose, fududaynta hawsha;

2. Waxay isticmaashaa qaab-dhismeed isku-dhafan oo hawo iyo qalab dabiici ah, taasoo keentay naqshad isku dhafan iyo miisaan fudud;

3. Hab fudud oo hawleedka guga ayaa bixiya hawlgal aan dayactir lahayn oo loogu talagalay wareegyada 10,000;

4. Farsamaynta isbiirsaday waa shaqo badbaadin, xasilloon, waxayna leedahay waxqabad is-quful oo aad u fiican.
