40.5KV Dibad-baxa Isku xidhka

Model:GW5-40.5

Korontada Anqiang Power's si madax banaan u horumarisay 40.5KV fur furka dibadda waa tiir laba jibaaran, nasasho toosan, nooca furitaanka, waxaana lagu qalabayn karaa furayaasha dhulka mid ama labada dhinac. Waa qalab koronto-sare oo dibadda ah oo ku habboon codsiyada AC 50Hz, oo leh heerarka korantada ee lagu qiimeeyay 40.5KV, 72.5KV, iyo 126KV. Waxaan u habeyn karnaa si waafaqsan sawirada ama shuruudaha macaamiisha.

Soo dir weydiin

Sharaxaada Alaabta

Tusmada ugu hooseysa ee GW540.5KV Dibad-baxa Isku xidhkawaxaa loogu talagalay gudbinta danab dhexdhexaad ah iyo sare iyo shabakadaha qaybinta ka shaqeeya hoos xaaladaha AC 50Hz. Waxaa si weyn loogu isticmaalaa saldhigyada hoose iyo saldhigyada korontada si si badbaado leh loo go'doomiyo wareegyada ku hoos jira danabka iyada oo aan la hayn culeys. Qaab-dhismeedku waxa uu qaataa habka furitaanka ee nooca V-ga toosan, isaga oo hubinaya nadiifinta korantada ee deggan iyo isku halaynta makaanikada adag ee jawiga bannaanka ee adag.

Marka la barbar dhigo furayaasha go'doominta ee dhaqameed, tani40.5KV Dibad-baxa Isku xidhkaWaxay bixisaa iska caabbinta dabaysha oo hagaagtay, kor u qaaday waxqabadka ka-hortagga wasakheynta, iyo nidaam xiriir oo xasiloon, taasoo ka dhigaysa mid ku habboon hawlgalka muddada dheer ee xeebaha, saxaraha, iyo gobollada qoyaanka badan.

Tilmaamaha Naqshadaynta Furaha

Qaab-dhismeedka furitaanka tooska ah ee V-u qaabaysan ee laba-geesoodka ah si loo horumariyo xasilloonida
Naqshadaynta tiirarka modulka ah ee leh dhoobo-xoog sare leh ama dahaadhyo isku dhafan
Waxay taageertaa hababka hawlgalka ee gacanta iyo matoorka
Qaabaynta dhulka ikhtiyaariga ah: aan sal lahayn, hal-saldhig, laba-saldhig
Nidaamka isku xidhka makaaniga ee u dhexeeya daabka weyn iyo daabka dhulka dhigay ee badbaadada
Iska caabbinta daxalka ee la xoojiyey ee adeegga muddada dheer ee dibadda

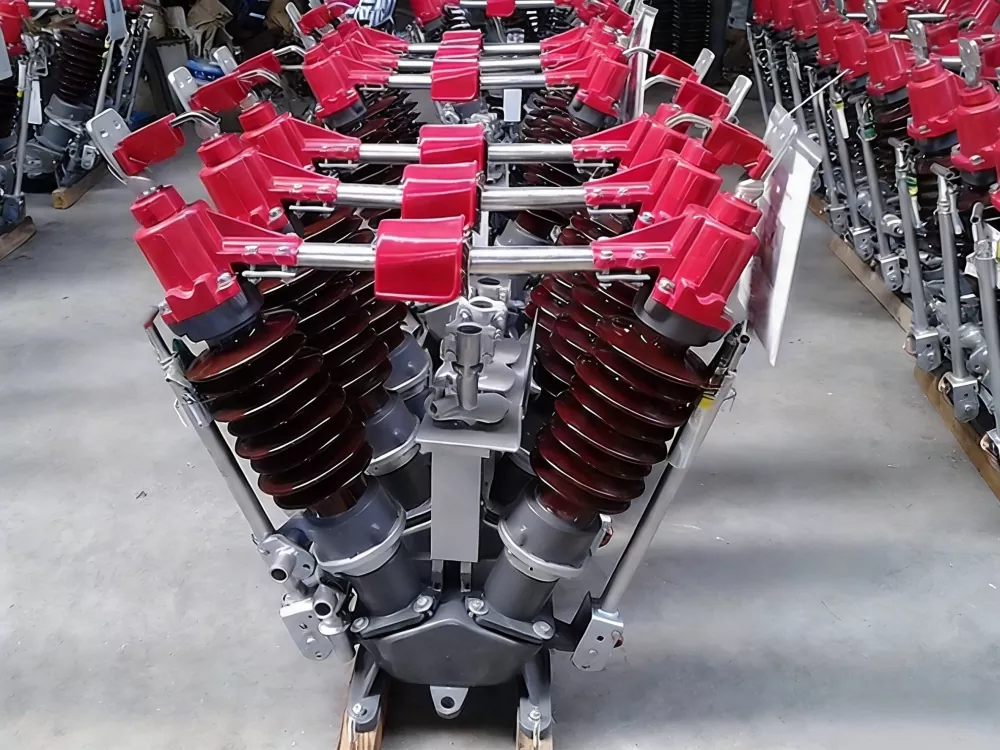

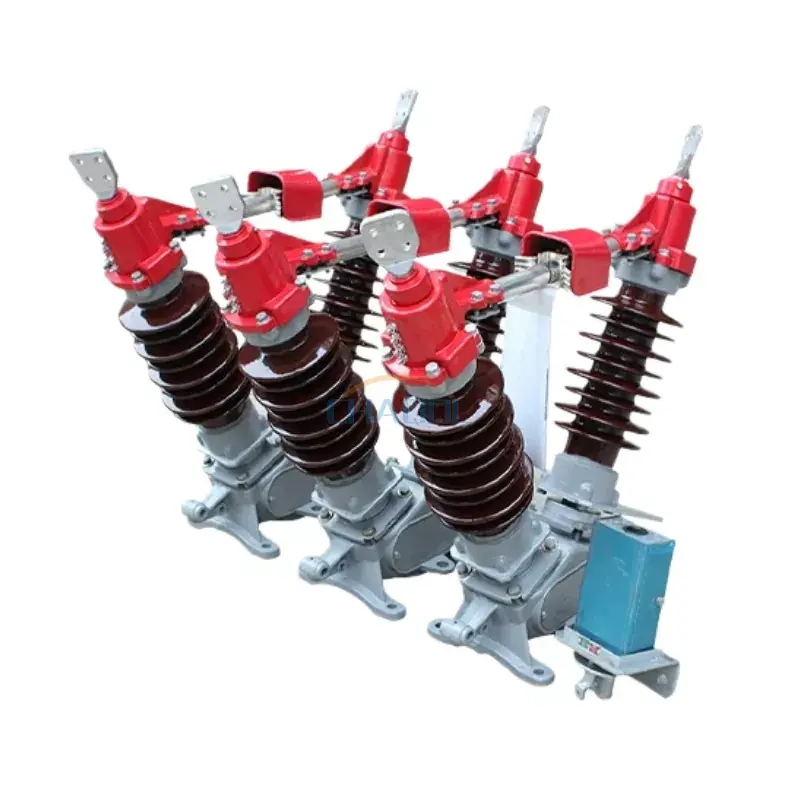

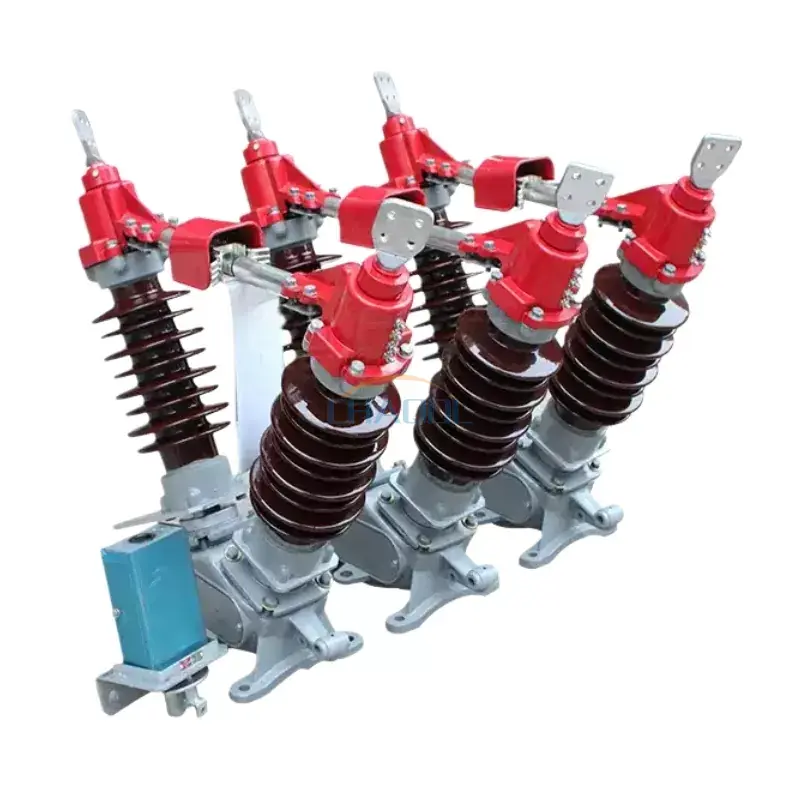

Sawirada Alaabta Dhabta ah

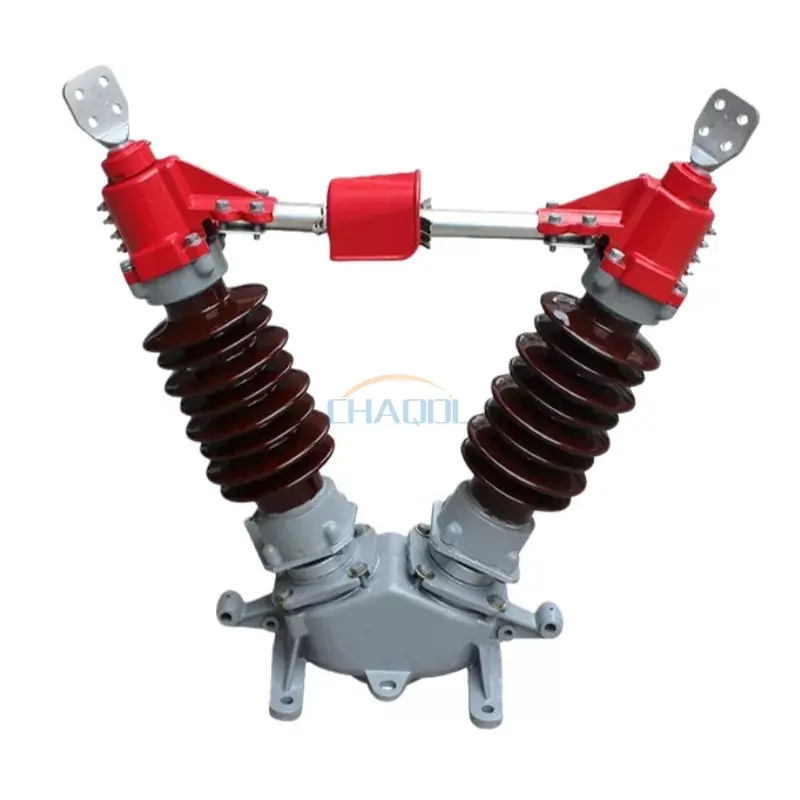

40.5KV Outdoor Disconnecting Switch

Qiyaasta Farsamada

Magaca Mashruuca			Qiimaha cabbirka
danab lagu qiimeeyay			40.5KV	72.5KV			126KV
Heerka dahaarka la qiimeeyay	1-daqiiqo inta jeer ee korontadu waxay u adkeysaneysaa danab		95/115 KV	140/160 KV			230/245KV
	Hilaaca hillaaca u adkaysta danab		185/215 KV	325/375 KV			550/630 KV
Inta jeer ee la qiimeeyay			50 Hz
Hadda la qiimeeyay			630/1250A	1600A			2000A
Lagu qiimeeyay muddada wareegga gaaban			4/2s
Culeyska mishiinka ee terminalka la qiimeeyay	Culayska qotoda dheer ee toosan		750N	1000N
	Culeyska dhinaca toosan		500N	750N
	Xoog toosan		750N	1000N
Masaafada gurguurta			1013/1256mm	1813/2248mm
Nolosha makaanikada			2000 jeer
Farsamaynta gacanta lagu shaqeeyo			CS17, CS17G
Habka hawlgalka ee mootada		Qaabka	CJ5/CJ6
		Voltage motor	AC220/380, DC220
		Kontoroolka wareegga wareegga	AC220, DC220
		Waqtiga furitaanka (ee wareegga wareegga)	6±1s
Miisaanka alaabta		Aan sal lahayn	360kg		500kg	800kg
		Gelin keli ah	390kg		560kg	900kg
		Laba jibbaaran	430kg		620kg	1000kg

Sawirka Cabbirrada Alaabta

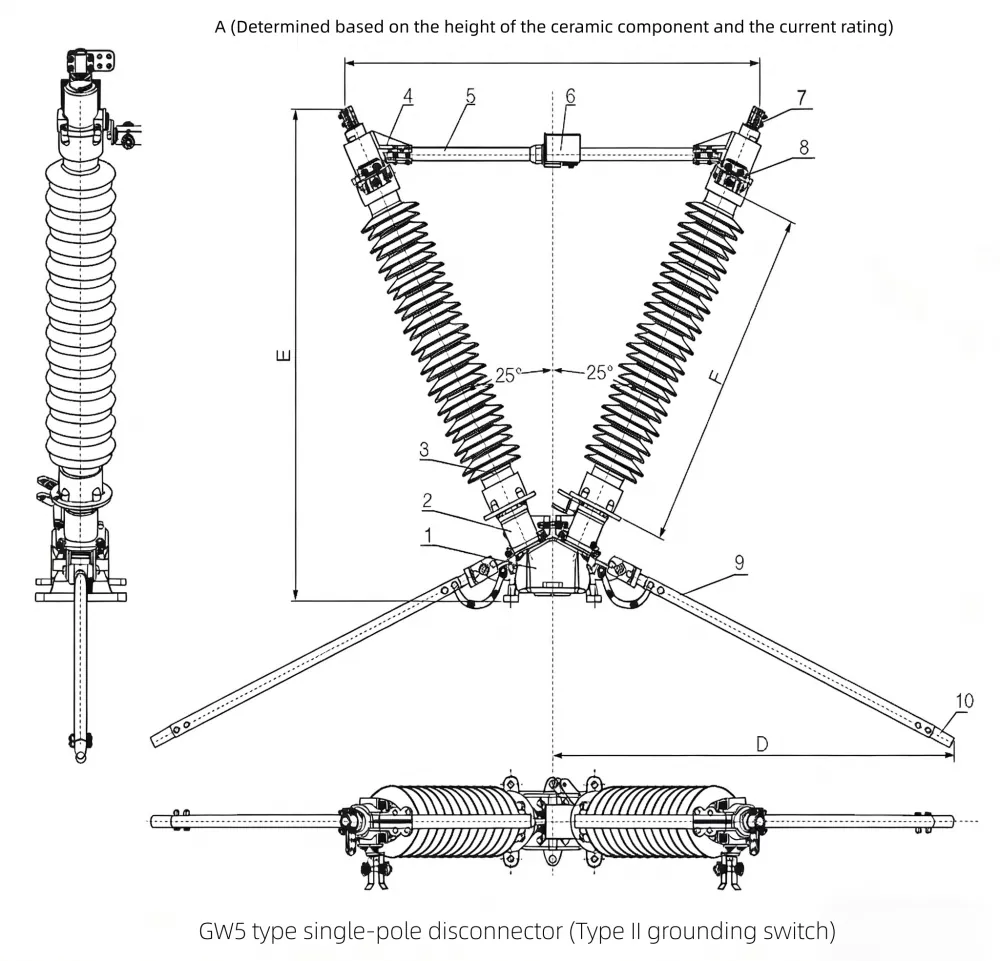

GW5-40.5KV Dibadeed Xidhiidhka Goynta Wareegyada Jaantuska

40.5KV Outdoor Disconnecting Switch Dimensions Diagram

1.Terminal block
2. Xiriirka ugu weyn
3. Farta xidhiidhka ugu weyn
4. Terminal block
5. Farta xidhiidhka oo dhulka la dhigo
6. Insulator post
7. Xaddid saxan
8. Grounding switch

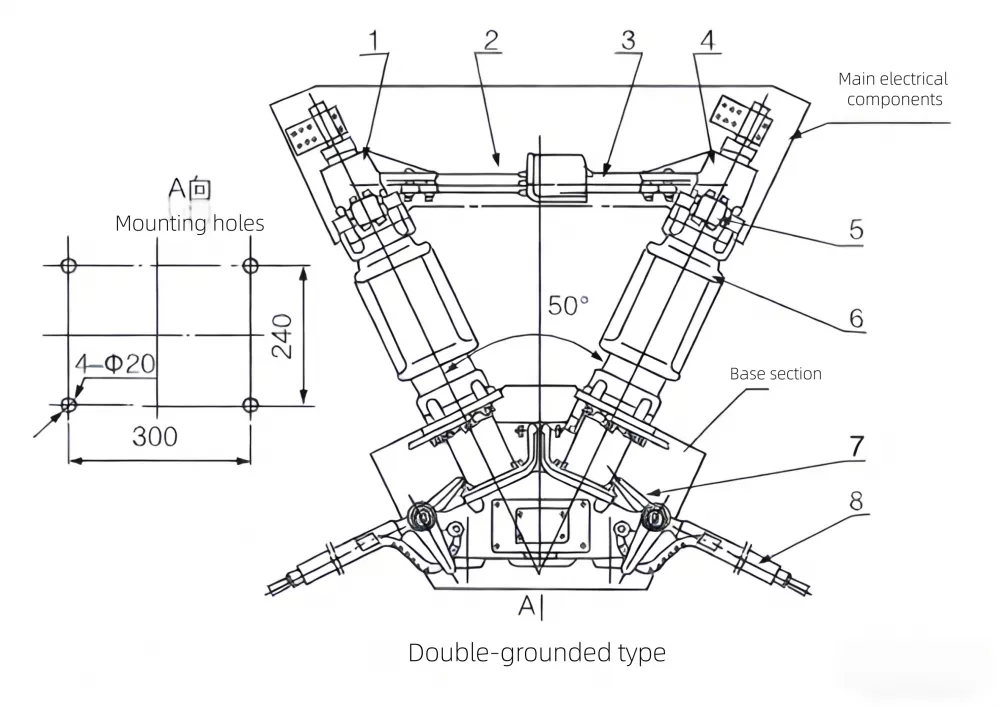

GW5-126 Isku-xidhka Dibadeed ee Jarista Sawirka cabbirrada

Outdoor High Voltage Disconnect Switch Diagram

1. Saldhig
2. Taageero
3. Boostada dahaadhka ah
4. Terminal block
5. Usha korantada ee wareega
6. Usha afargeesoodka ah
7. Xakamaynta meesha
8. Dejinta xidhiidhka taagan
9. Tuubbada aluminiumka wareegta dhulka
10. Grounding xiriir beddelka

Isbarbardhigga Alaabooyinka La midka ah

Shayga Qiimaynta	GW5 40.5KV Dibadeed Isku xidhidhiyaha	Qaabka Tartamayaasha Caadiga ah
Deganaanshaha qaab dhismeedka	Naqshad laba jibaaran oo V-nooca la xoojiyay oo leh iska caabin dabaysha sare leh	Qaab dhismeedka hal-column, xasiloonida farsamada hoose
Waxqabadka xiriirka	Faraha xidhiidhka ee dahaadhka ah ee qalinka ah, qaybinta cadaadiska la hagaajiyay	Xidhiidhada naxaasta caadiga ah, xidhashada degdega ah
adkeysiga dibadda	Dahaarka ka-hortagga daxalka + nidaamka dahaarka ee la xoojiyay	Dahaarka aasaasiga ah, waxqabadka xeebta xaddidan
Dabacsanaanta hawlgalka	Waxay ku taageertaa buug-gacmeedka + hawlgalka matoorka leh ilaalinta qufulka	Inta badan hawlgalka gacanta oo kaliya
Qiimaha dayactirka	Hooseeyo sababtoo ah nolosha farsamada dheer (2000 wareeg)	Inta jeer ee dayactirka sare

Xaaladaha Codsiga

The40.5KV Dibad-baxa Isku xidhkaayaa si weyn loogu dabaqaa:

Substations-ka korantada sareeyo iyo meelaha wax laga beddelo
Nidaamyada go'doominta khadka gudbinta korontada
Shabakadaha qaybinta tamarta warshadaha
Qodobbada isku xirka tamarta tamarta la cusboonaysiin karo (dabaysha iyo beeraha qorraxda)
Mashaariicda hagaajinta isku xidhka magaalooyinka iyo miyiga

Iyada oo nashqaddeeda makaanikada adag iyo waxqabadka korantada ee deggan, xidhidhkani waa doorasho la isku halayn karo oo loogu talagalay hawlwadeenada u baahan badbaadada muddada dheer iyo hufnaanta hawlgalka ee jawiga dibadda.
