Qalabka Isku-dhafan ee Saliida Immersed

Model:JLS-35, 10, 6,3

Anqiang Power waa soo saaraha Shidaalka Isku-dhafka Qalabka ah ee Immersed. Transformer-kani waxa uu ku habboon yahay nidaamyada korantada AC ee saddex-waji ah oo leh inta jeer ee la qiimeeyay ee 50Hz ama 60Hz laguna qiimeeyay danabyada 3KV, 6KV, 10KV, iyo 35KV. Alaabtu waxay leedahay saxnaan sare, miisaan fudud, rakibid fudud, iyo awoodaha ka hortagga tuugada.

Soo dir weydiin

Sharaxaada Alaabta

Qalabkan isku dhafan ee Saliida Immersed, oo sidoo kale loo yaqaan sanduuqa cabbiraadda korantada-sare ee saliidda, waxaa si madaxbanaan u horumariyay Anqiang Electric waxayna ku habboon tahay isticmaalka gudaha iyo dibaddaba. Sanduuqa cabbiraadda saddex-waji oo saddex-waji ah ayaa ka kooban laba koronto oo hal-waji ah iyo koronto-bixiyeyaal hadda jira, halka sanduuqa cabbiraadda afar-waji ee saddex-waji uu ka kooban yahay saddex koronto-hal-waji ah iyo koronto-bixiyeyaal hadda socda. Kuwan waxa lagu rakibay sanduuq sanduuq ah, oo leh terminaalka hoose iyo kan sare ee la isticmaalayo bushs porcelain oo lagu rakibay guddida. Mitir koronto ayaa lagu rakibay dusha sare ee ujeedooyinka cabbiraadda.

Muujinta sawirka alaabta

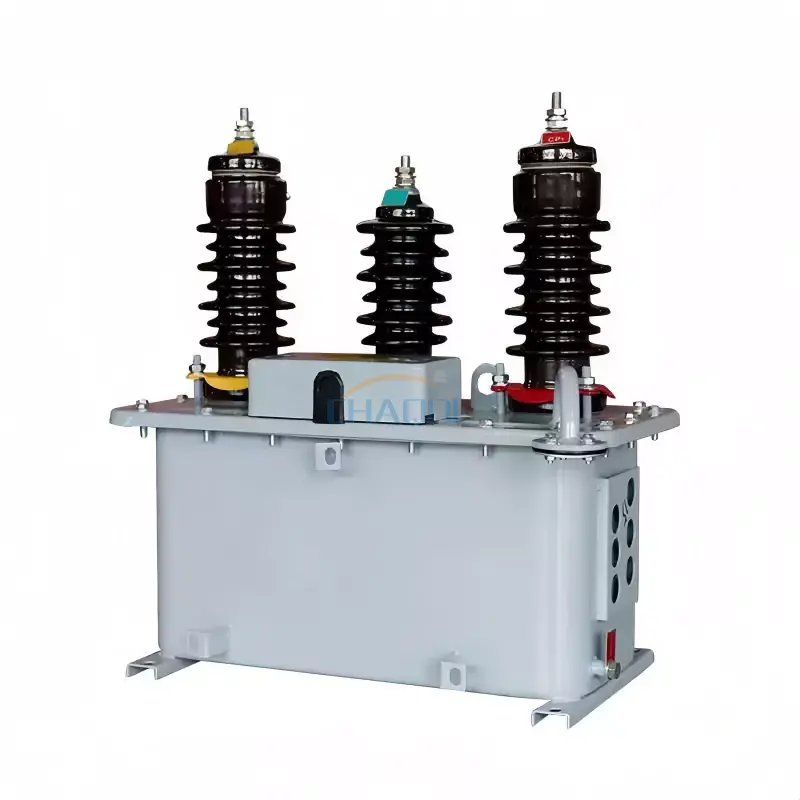

Oil Immersed Combined Instrument Transformer

Magaca Alaabta	Transformer qalab isku dhafan oo saliid lagu dhex daray	Qaabka Alaabta	JLS-10
Heerka saxda ah	0.5/0.2 darajo	danab lagu qiimeeyay	6/10/35KV
Inta jeer ee la qiimeeyay	50Hz	Qiyaasta joomatari ee lagu qiimeeyay	Saamiga korantada: 6000/100

Tilmaamaha Farsamada

Xakamaynta farsamada ee qaybta danab ee JLS-35, 10, 6, iyo 3 qalab isku dhafan oo saliid ah

Qaabka Alaabta	JLS-35	JLS-10	JLS-6	JLS-3
La qiimeeyay danab hoose	35KV	10KV	6KV	3KV
Korontada ugu badan	40.5KV	11.5KV	6.9KV	3.5KV
Danab sare oo la qiimeeyay	100KV
Awoodda ugu badan	1000VA	460VA	320VA	320VA
Soo noqnoqda tamarta hal mar ah ayaa u adkeysaneysa tijaabada danabka	80	38	32	25
Heerka dahaarka la qiimeeyay	41/95/200	12/42/75	7.2/32/60	3.6/25/40

Xakamaynta farsamada ee qaybta hadda jirta ee JLS-35, 10, 6, iyo 3 qalab isku-dar ah oo saliid lagu daray

La qiimeeyay hadda		Heerka sare ee hadda	FS badan	1s xasilloonida kulaylka badiyaha hadda	Lagu qiimeeyay xasilloonida dhaq-dhaqaaqa badan ee hadda jira
Saamiga doorsoome kali ah	0.5, 1.2, 5.5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60 75, 100, 120, 150, 200, 250, 300, 400, 600, 800	5A	10	70	120
Saamiga laba-geesoodka ah	2.5-5.5-10,7.5-15,10-20,15-30,20-40,25-50,30-60,50-75,100-20,150-300,250-50

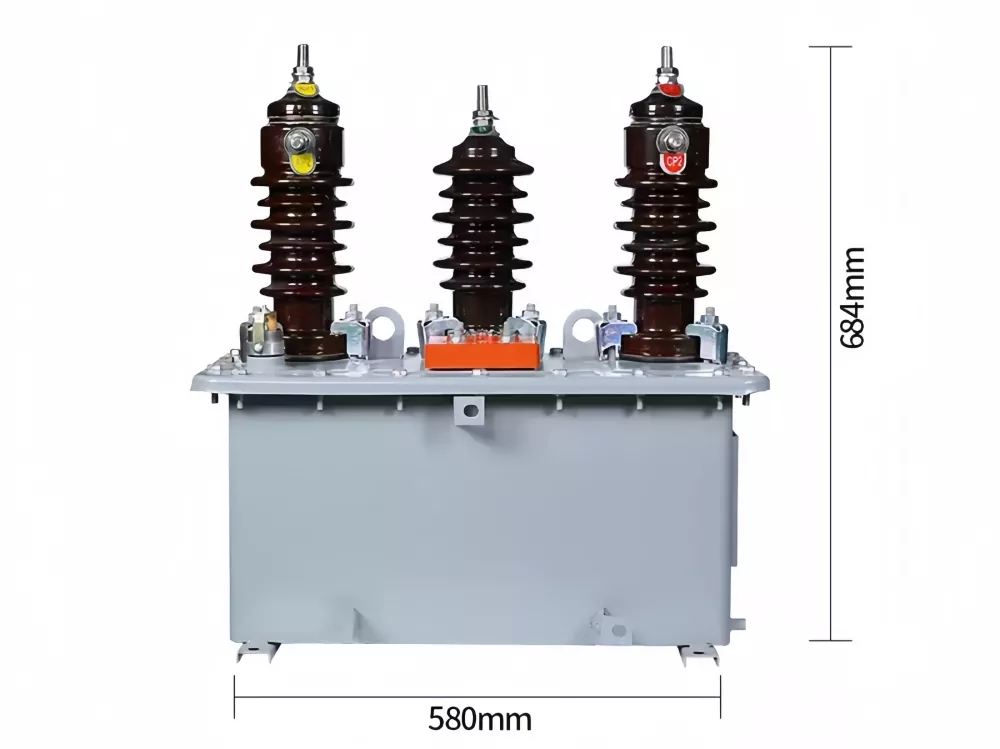

jaantuska cabbirka alaabta

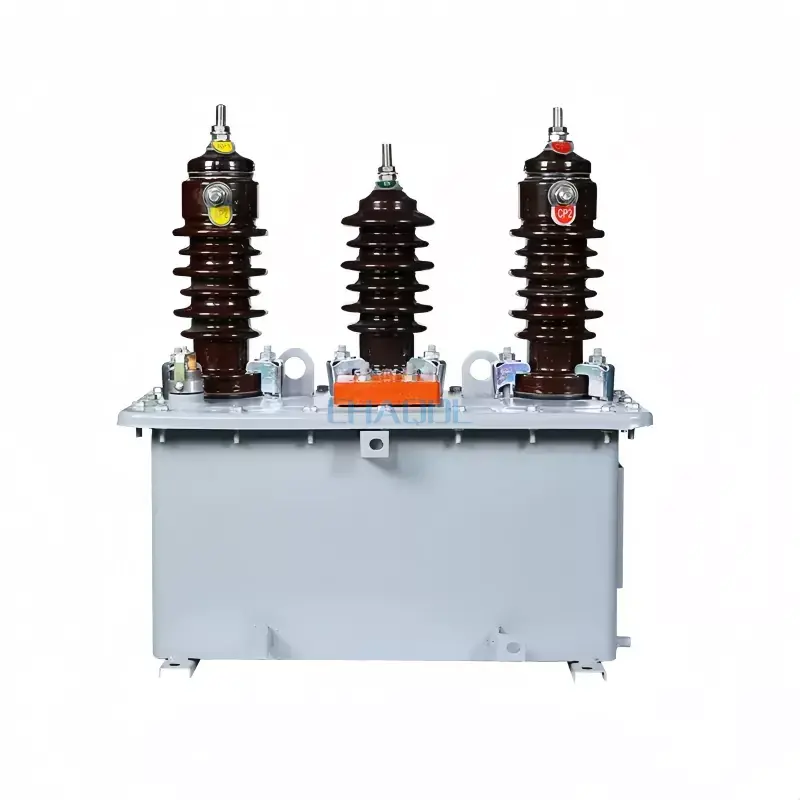

Oil Immersed Combined Instrument Transformer

Hot Tags: Kala beddelka Qalabka Isku-dhafan ee Saliidda Immersed
