Taxanaha eber ee Kala beddelka hadda

Model:LXK-Φ80-200

Anqiang Power's si madax banaan u horumariyay Zero Sequence Transformer Current Transformer wuxuu ku habboon yahay nidaamyada korantada ee leh inta jeer ee la qiimeeyay ee 50Hz ama 60Hz iyo danab lagu qiimeeyay 0.5KV iyo wixii ka hooseeya, si loogu isticmaalo cabbiraadda tamarta iyo tamarta iyo ilaalinta gudbinta. Waxay ka kooban tahay iska caabin heerkul sare ah, waxqabadka dahaarka wanaagsan, cabbir kooban, iyo rakibid fudud.

Soo dir weydiin

Sharaxaada Alaabta

Qaabka koronto-bixiyeha hadda ee isku xigxiga eber ee Anqiang Power waa LXK-Φ80-200, oo leh danab lagu qiimeeyay 10KV iyo saxnaanta 10P10. Hadda la qiimeeyay waxaa loo habeeyey iyadoo loo eegayo shuruudaha isticmaalaha. Jirka sheyga waxa uu ka samaysan yahay shubka resin epoxy, oo waxa uu adeegsadaa go'yaal bir ah oo silikoon duuban oo tayo sare leh iyo gariiro naxaas ah oo saafi ah. Waraaqaha birta ee silikoon ee qabow-duuban waxay yareeyaan luminta qul-qulka iyo luminta hadda jirta, hagaajinta waxqabadka dahaarka iyo hubinta badbaadada qalabka; conductivity wanaagsan ee naxaasta waxaa caadi ahaan loo isticmaalaa in fiilooyinka korontada iyo qaybaha sida transformers, switchgear, iyo wareegyada wareegyada.

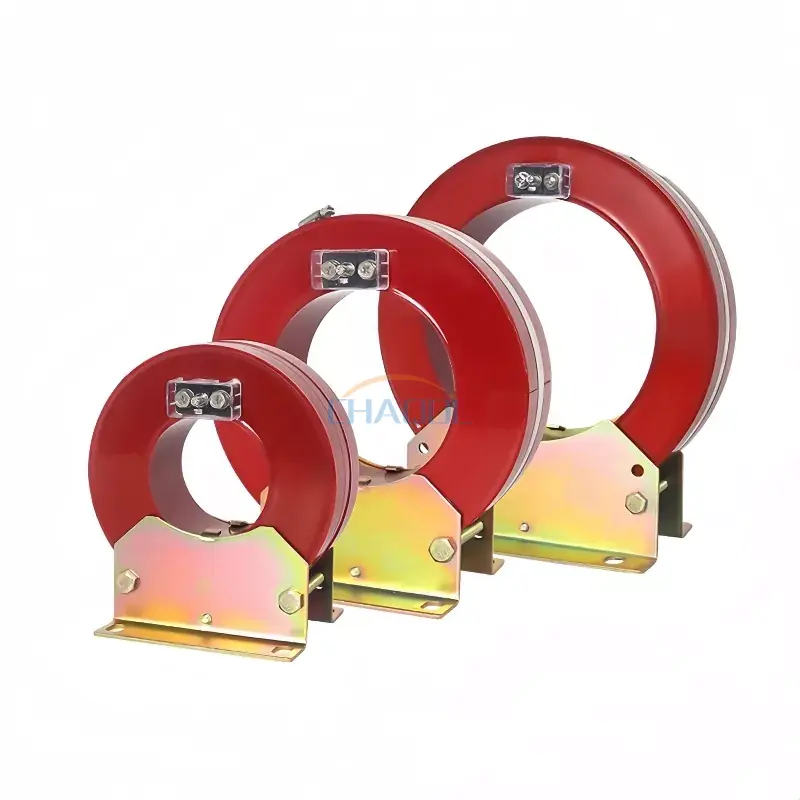

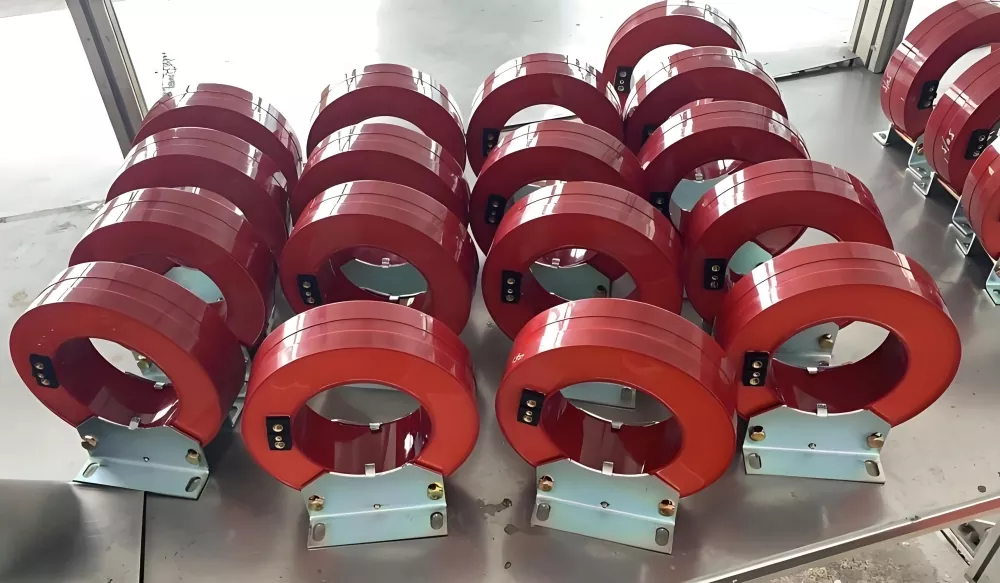

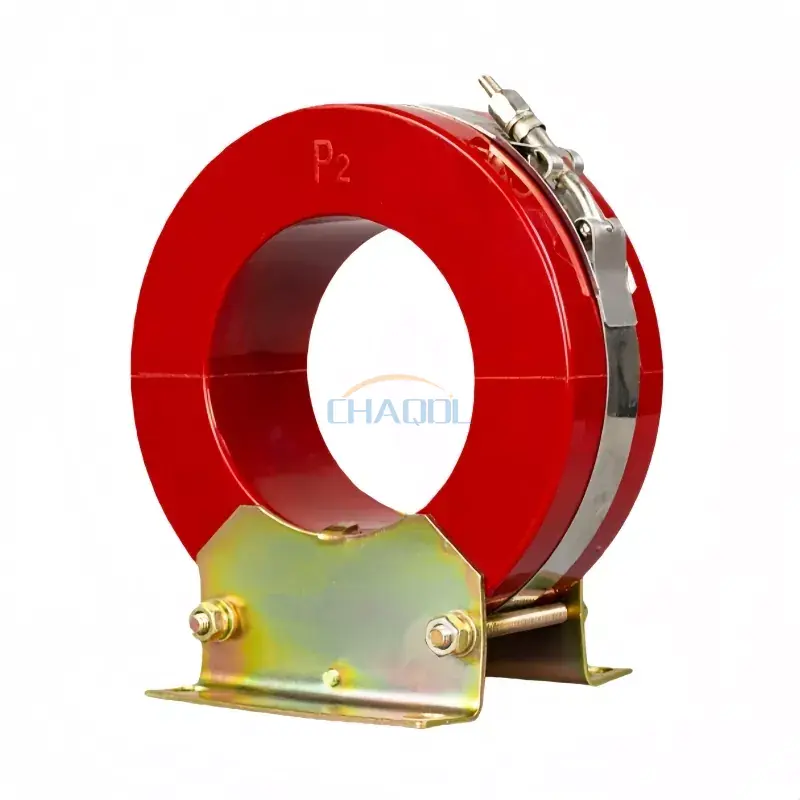

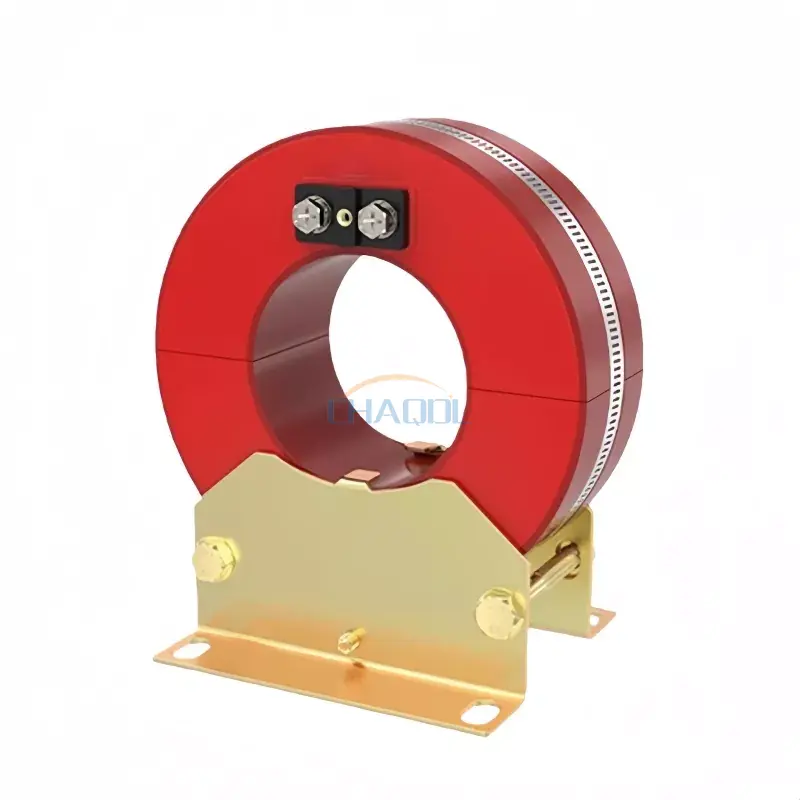

Sawirada alaabta dhabta ah

Zero Sequence Current Transformer

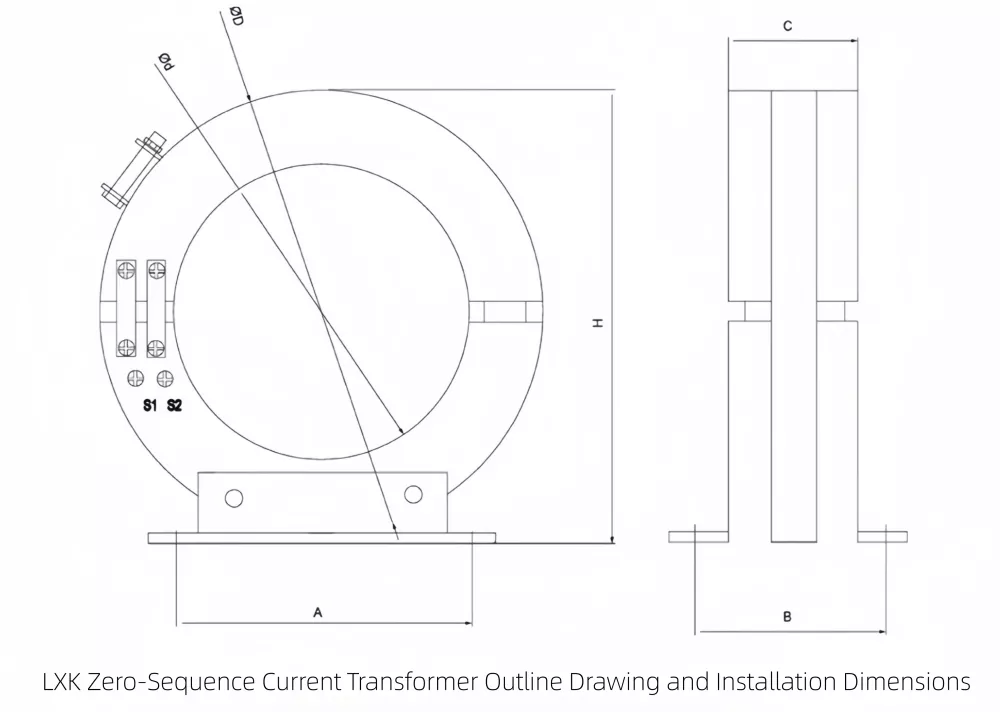

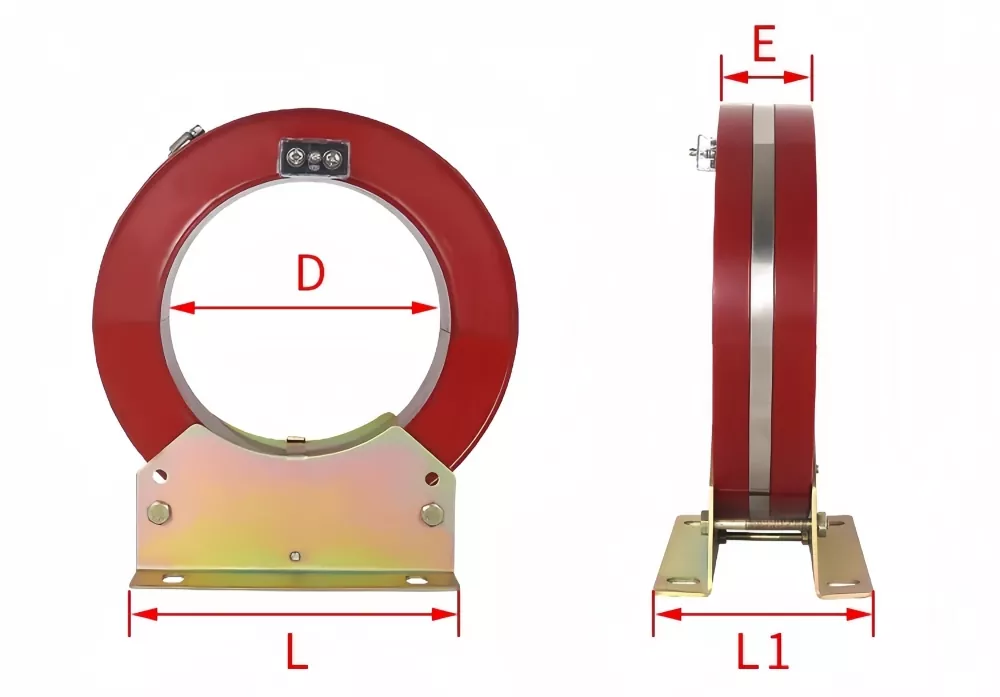

Muuqaalka alaabta iyo jaantuska cabbirka

Zero Sequence Current Transformer

Tilmaamaha Alaabta	D	E	L	L1
LXK-80	Φ80	58	130	123
LXK-100	Φ100	58	130	122
LXK-120	Φ120	57	130	120
LXK-150	Φ150	58	190	123
LXK-180	Φ180	58	190	125
LXK-200	Φ200	60	280	129
LXK-240	Φ240	80	280	167
LXK-260	Φ260	55	280	120
LXK-300	Φ300	80	280	170

Gudbinta xuduudaha farsamada

Qaabka gudbinta	Habka isku xirka gariiradda gudbinta	Qiimaha cabirka gudbinta	Qiimaha hadda jira (A)
DD-11/60 DD-1/60	xiriir taxane ah	15*1	2.4-4.5
		30*1
	barbar socda	15*2	3-5
		30*2
	xiriir taxane ah	15*1	3-5
		30*1
	barbar socda	15*2	3-6
		30*2

Heerka dahaarka la qiimeeyay: 0.5/3KV

Tilmaamaha Alaabta

Isku xigxiga eber ee Anqiang Electric Transformers hadda waa naqshad kala qaybsan oo leh shubka resin epoxy. Inta lagu jiro rakibidda, transformer-ka waxaa loo kala saari karaa laba qaybood ka dibna la isku dari karaa iyada oo la isticmaalayo siddooyin isku dhejis ah, taas oo ka dhigaysa rakibidda mid aad u habboon.

Xaaladaha Shaqada ee Caadiga ah

1. Goobta lagu rakibay: Gudaha

2. Heer kulka deegaanka: Heerkulka ugu yar -5℃, heerkulka ugu badan 40℃, celceliska maalinlaha ah ee aan ka badnayn 30℃

3. Ku habboon xaaladaha jawiga iyada oo aan wasakh daran lahayn
