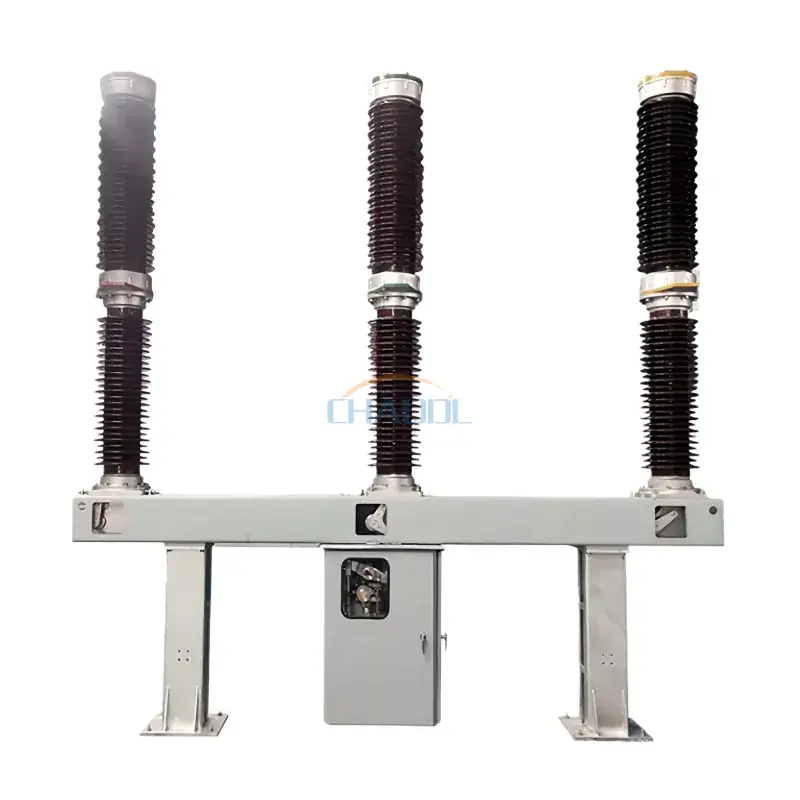

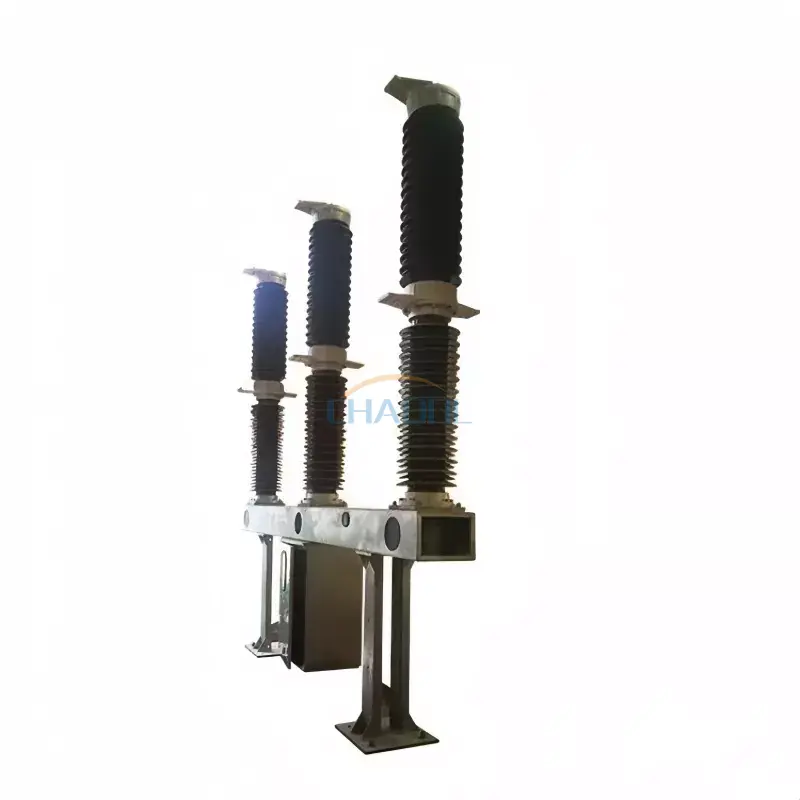

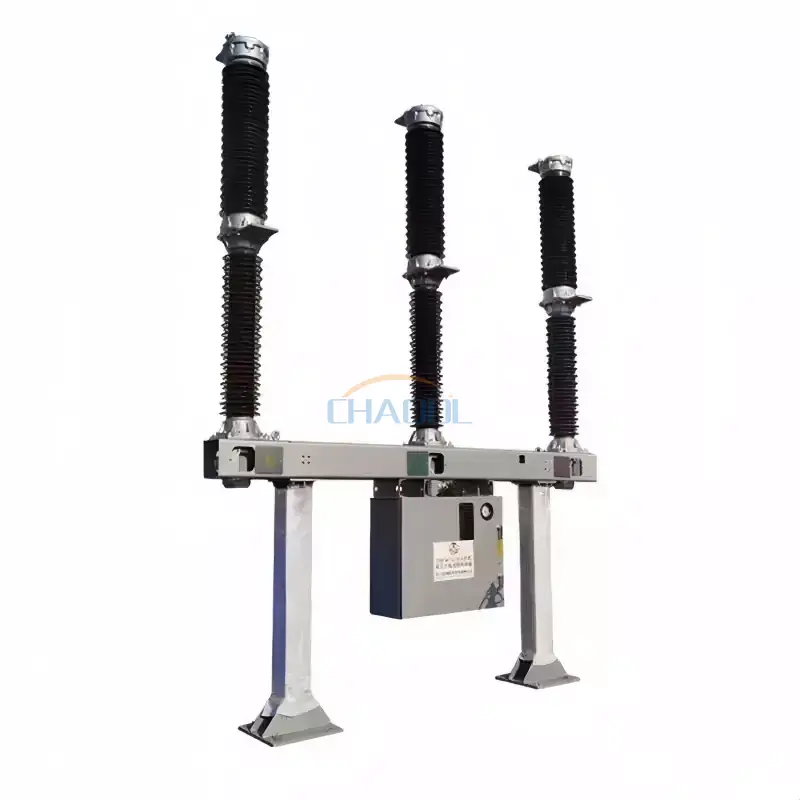

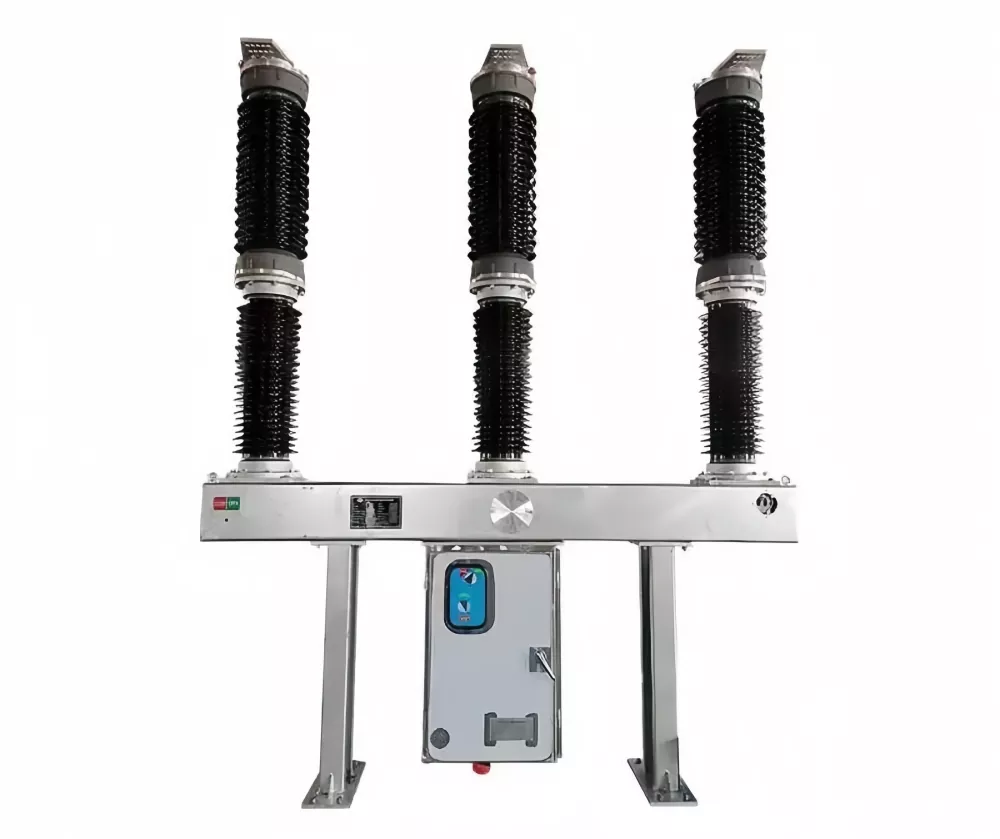

126KV dibadda SF6 wareegga wareegga wuxuu leeyahay nambarka moodeelka LW36-126. Taxanaha LW sulfur hexafluoride circuit breaker waxa uu leeyahay hal tiir, qaab dhismeed xidhiidhka jejebsan halkii tiir ee qolkiisa bakhtiinta. Waxay isticmaashaa mabda'a daminta arc is-tamar ah, iyada oo dhalinaysa qulqulka hawada iyada oo loo marayo qolka daminta ee madax-bannaanida inta lagu jiro habka jebinta si loo qaboojiyo arc oo uu u joojiyo hadda. Waxay ku qalabaysan tahay habka guga ee matoorka CT-ga iyo isku-xidhka makaanikada ee saddex marxaladood ah. Alaabtan waxa loo isticmaali karaa sidii qalabka xakamaynta iyo ilaalinta ee nidaamyada korantada, waxaana sidoo kale loo isticmaali karaa sida xadhigga wareegga wareegga.
1. Dhererka shaqada ee 126kV Outdoor SF6 Wareegga Wareegga waa in aanu dhaafin 3000 mitir oo ka sarreysa heerka badda;
2. Heerkulka jawiga shaqadu waa -30 ilaa 40 darajo Celsius;
3. Xawaaraha dabaysha ugu badan ee lagu dabaqi karo 126kV Outdoor SF6 Goobta rakibaadda Wareegga waa 34 m/s;
4. Heerka wasakhowga waa fasalka III (25 mm/kV).
|
danab lagu qiimeeyay |
126kV |
|
Inta jeer ee la qiimeeyay |
50Hz |
|
Hadda la qiimeeyay |
3150A |
|
Lagu qiimeeyay qulqulka wareega-gaaban |
40kA |
|
Lagu qiimeeyay wakhtiga gaaban u adkaysanayo wakhtiga/mudada |
40/3kA/s |
|
Heerka ugu sarreeya ee u adkeysiga hadda |
100kA |
|
Lagu qiimeeyay samaynta wareega gaaban |
100kA |
|
Lagu qiimeeyay jabinta hadda |
10kA |
|
Isku-dhafan xad dhaaf ah- abid |
1.5 |
|
Inta jeer ee awoodda 1-daqiiqo u adkeysaneyso danab |
230KV |
|
Hilaaca hillaaca u adkaysta danab |
550KV |
|
Khadka lagu dallacay iyo jabinta hadda |
50A |
|
Cadaadiska gaaska ee SF6 (20) |
0.6MPa |
|
Nolosha korontada |
16 jeer |
|
Nolosha makaanikada |
6000/10000 jeer |
