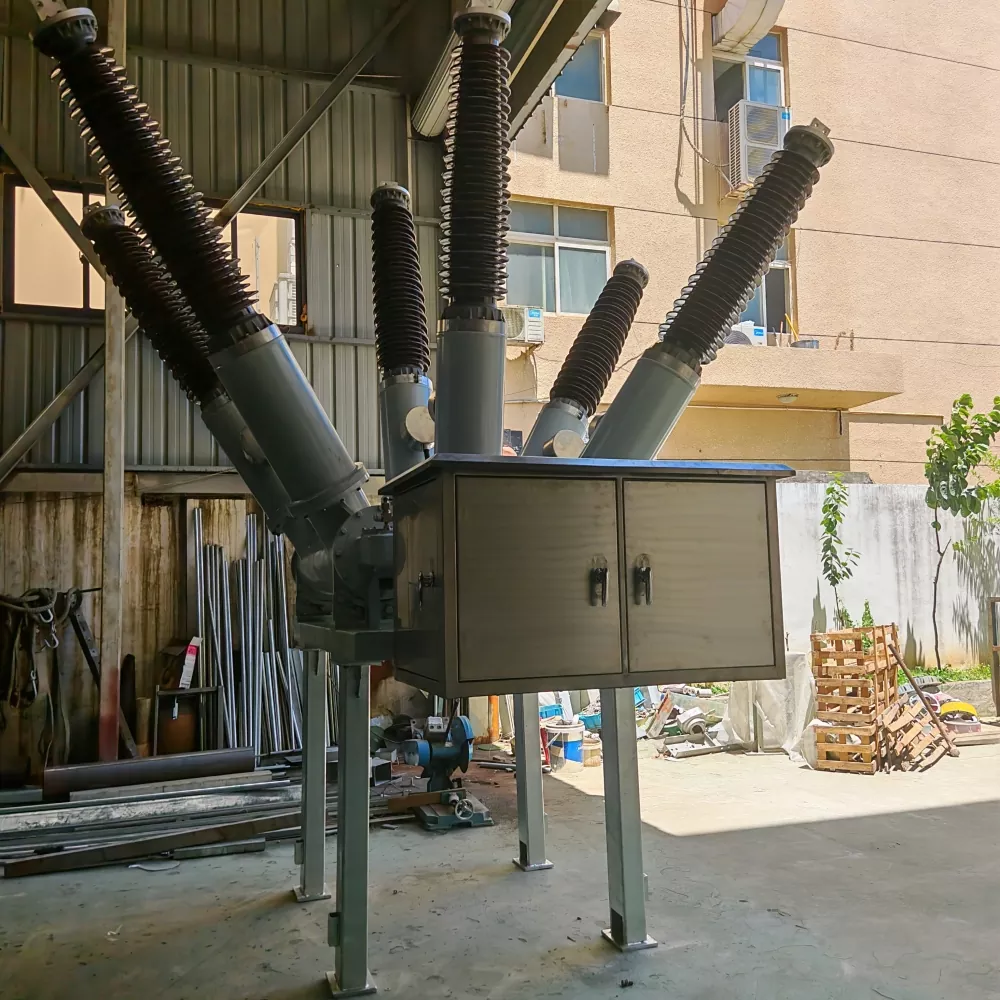

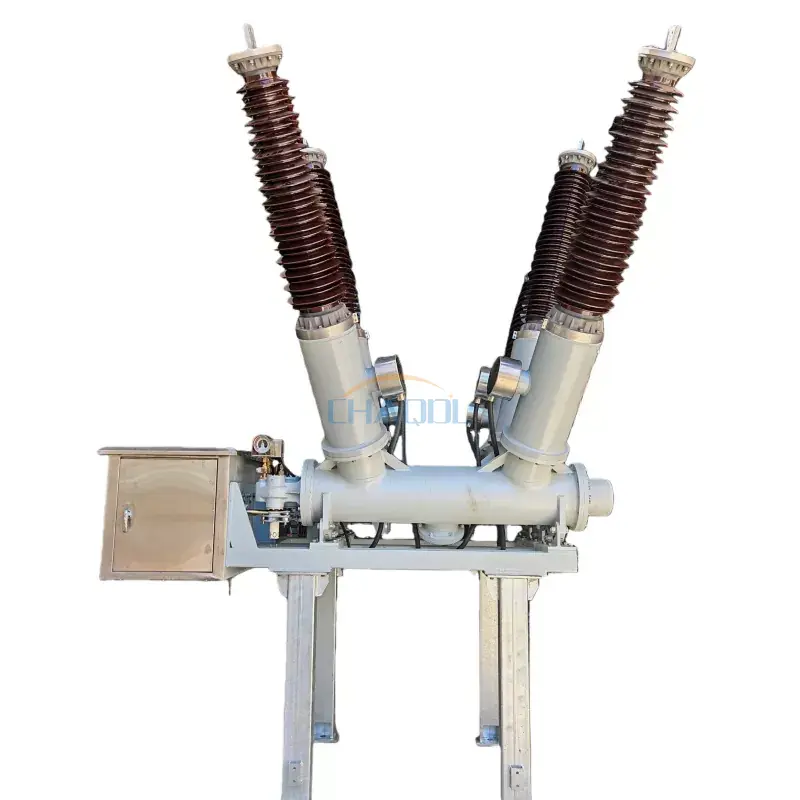

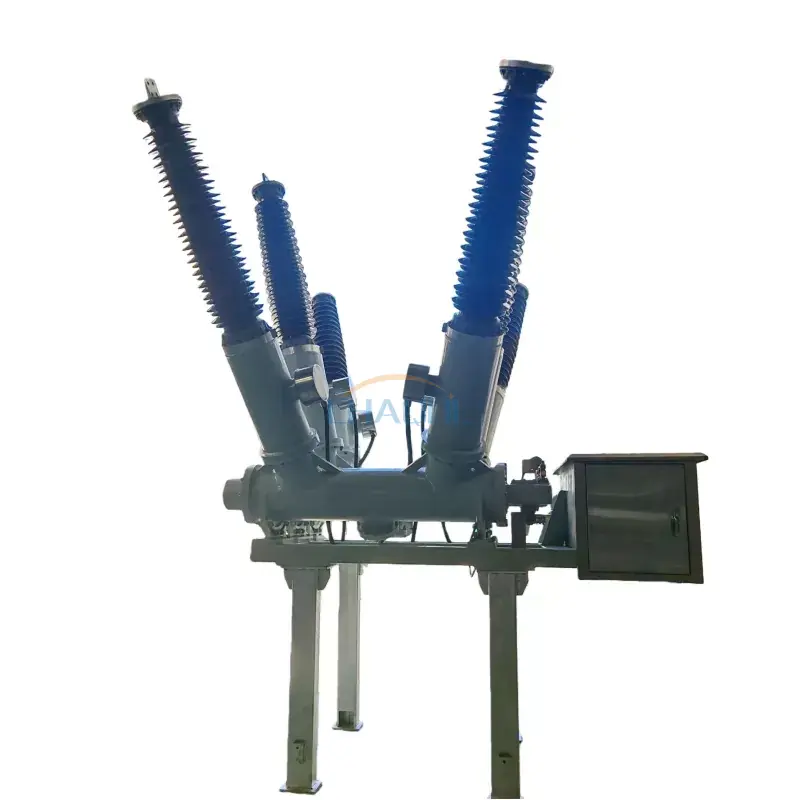

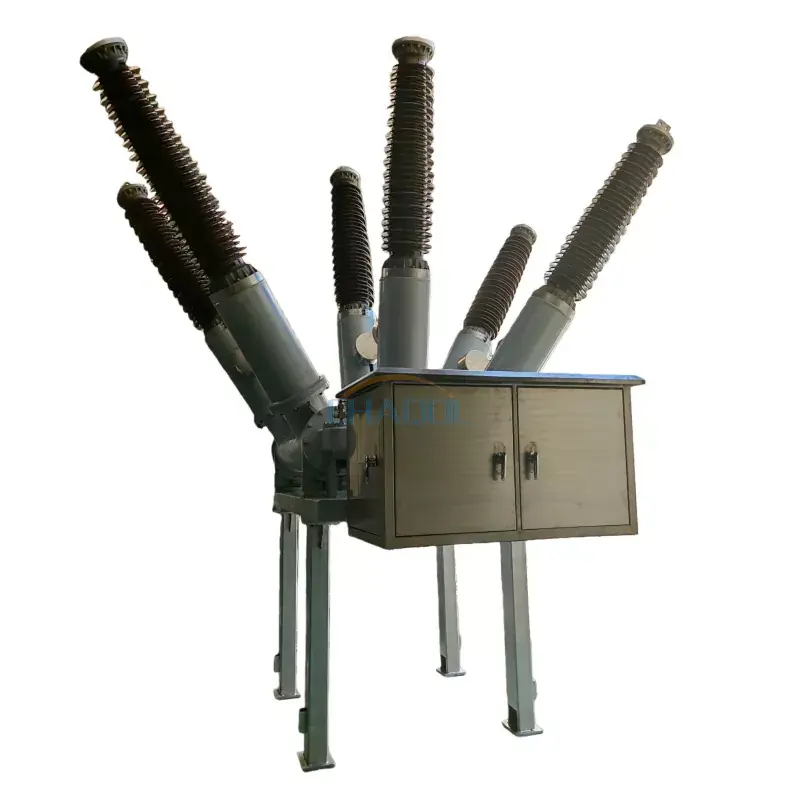

Nooca 66KV taangiga nooca SF6 wareegga wareegga, moodelka LW36-66, waxaa loo adeegsadaa 66KV (126KV) gudbinta korantada iyo nidaamyada qaybinta oo leh inta jeer ee lagu qiimeeyay 50Hz saddex-waji AC ah. Waxa kale oo loo isticmaali karaa sidii tie breaker iyo beddelidda bangiyada capacitor-ka. Wareegtada SF6 waxay leedahay qaab dhismeed is haysta, raad yar, waxayna u baahan tahay shaqo rakibid ugu yar. Waxa kale oo ay buuxisay shuruudaha beddelashada saliid la'aanta waxayna leedahay nolol makaanik ilaa 10,000 oo hawlgal ah.

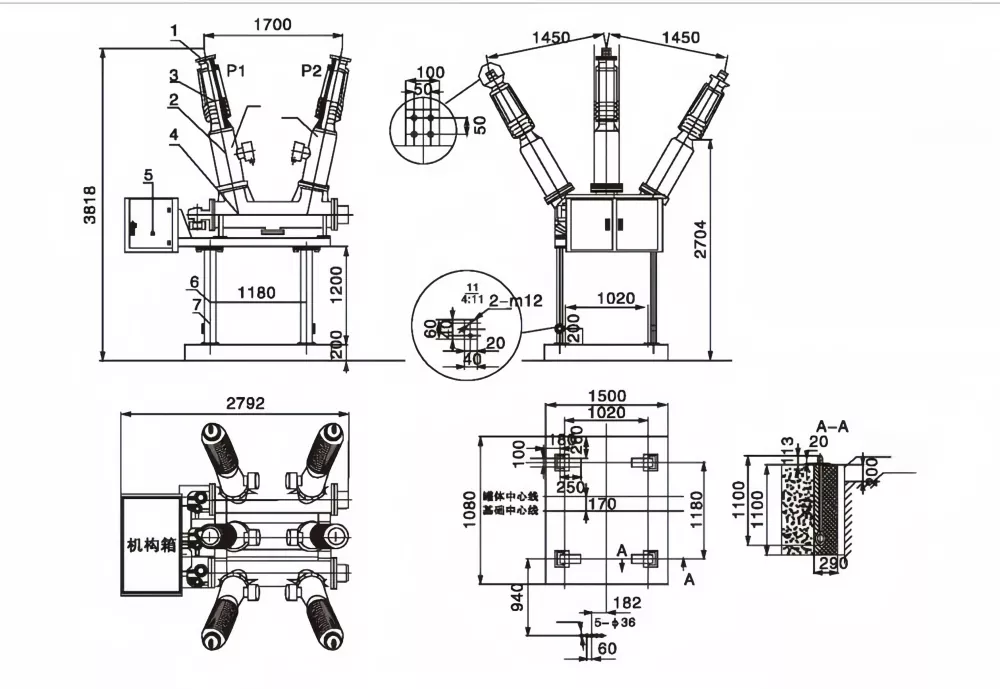

1. Xarun hal-waji ah (aluminium lagu dahaadhay qalin)
2. 66KV duurka baxaya (xoogga sare ee aluminium poselin)
3. CT-ga lagu dhex dhisay (iyada oo loo marayo baadiyaha nooca)
4. Qolka bakhtiinta ee Arc (nooca haanta dabaqa ku rakiban)
5. Sanduuqa farsamada (oo ay ku jiraan habka hawlgalka iyo guddiga sare)
6. Taageerada birta kanaalka (120mm)
7. Gooska dhulka (4 goobood)
1. Waxqabadka sheyga xooggan, heerka sare ee qaadista awoodda hadda, oo gaarey 3150A.
2. Nolosha wax soo saarka dheer, nolosha korantada ee 31.5kA*24 wareegyada, iyo nolosha farsamada ee ilaa 10,000 wareegyada.
3. Shaabad lagu kalsoonaan karo, SF6 heerka daadinta sannadlaha <0.5%.
4. 66KV Taangiga Nooca SF6 Wareegga Wareegga wuxuu ku habboon yahay jawiga qallafsan ee shaqada, oo ay ku jiraan heerarka wasakhowga IV iyo heerkulka u dhexeeya -40°C ilaa +40°C.
Tilmaamaha Farsamada ee Jabiya Wareegtada
|
danab lagu qiimeeyay |
66KV |
|
Inta jeer ee awoodda u adkeysata danab (5 daqiiqo) ee gaasta SF6 ee cadaadiska qiyaasta eber. |
84KV |
|
Inta jeer ee la qiimeeyay |
50Hz |
|
Hadda la qiimeeyay |
3150A |
|
Isku xidhka heerka hore |
1.5 |
|
La qiimeeyay samaynta wareega gaaban ee hadda (qiimaha ugu sarreeya) |
80kA |
|
Wareegga gaaban ee la qiimeeyay u adkaysanayo hadda |
31.5kA |
|
Heerka ugu sarreeya ee u adkeysiga hadda |
80kA |
|
Lagu qiimeeyay muddada wareegga gaaban |
4s |
|
Lagu qiimeeyay hadda jabinta tallaabo ka baxsan |
8kA |
|
Dallacaadda khadka iyo beddelka hadda |
10A |
|
Cadaadiska gaasta ee sulfur hexafluoride (cadaadiska cabbirka 20 ℃) |
0.5Mpa |
|
Heerka daadinta gaaska SF6 ee sannadlaha ah |
<0.5% |
|
Nolosha makaanikada |
10,000 jeer |
|
Culayska gaasta SF6 ayaa ka buuxsamay unug kasta. |
10kg |
|
Miisaanka wareegga wareegga kasta |
1800kg |
|
Danab wareeg ah caawiye |
DC220V/110V |
|
Furitaanka iyo xidhitaanka danab gariiradda / hadda |
DC110/4; DC220/2 |
|
Wakhtiga kaydinta tamarta matoorka |
≤15s |
|
Kuleyliyaha iyo iftiinka wareegga wareegga |
AC220V |
|
Kaaliyaha beddelka danab lagu qiimeeyay |
DC220V/AC220V |
|
Kaaliyaha beddelka ayaa lagu qiimeeyay hadda |
10A |
|
Awood kaydinta tamarta tamarta |
600W |
