33kV Kelida Tiirka Dibadda ee Wareegga

Korontada Anqiang waxay ku takhasustay soo saarista 33kV hal tiir oo dibadda ah waxayna ku shaqeysaa xarunteeda wax soo saar ee u go'an ee jebiyaasha wareegga hawada. Tiirkan 33kV ee hal tiir dibadda ah oo ku rakiban wareegga wareegga wuxuu leeyahay hab si gaar ah loogu habeeyey habka hawlgalka guga iyo kontaroolo caqli badan oo la isku halayn karo. Waxaan sidoo kale awoodnaa inaan u habeyno cutubyada qiimeynta danab gaar ah si waafaqsan shuruudaha isticmaalaha.

Soo dir weydiin

Sharaxaada Alaabta

33kV Single Pole Outdoor Circuit Breaker waxa ugu horayn loogu talagalay in lagu isticmaalo korantada dhexdhexaadka ah ee korka sare ee korantada, taas oo u adeegaysa in lagu beddelo qulqulka culayska, qulqulka xad dhaafka ah, iyo qulqulka wareega gaaban. Waxa ay leedahay shaqo dib u xidhid toos ah oo awood u leh in ay qabato ilaa saddex hawlgal oo dib u xidhid ah. Alaabtani gabi ahaanba waa mid dayactir la'aan ah inta ay nooshahay oo dhan; Intaa waxaa dheer, cabbirkeeda is haysta iyo naqshadaynta fudud waxay fududaynaysaa rakibidda sahlan.

33kV Single Pole Outdoor Circuit Breaker

Tilmaamaha Farsamada Alaabta

Halbeegyada Farsamo ee ugu Muhiimsan ee Wareegtada

Mashruuca	Qiimaha tirooyinka
Voltage lagu qiimeeyay	35 kV
Hadda lagu qiimeeyay	630/1250A
Inta jeer ee la qiimeeyay	50/60Hz
1-daqiiqo Korontada-soo noqnoqoshada U adkaysiga Voltage	80/95 kV
Hilaaca U adkaysta Voltage (U Sarreysa)	185 kV
Lagu Qiimeeyay Jabinta Wareegga Gaaban ee Hadda	20/25/31.5 kA
Samaynta Wareegga Gaaban ee la qiimeeyay (ugu sarreeya)	80 kA
Heerarka ugu sarreeya ee la qiimeeyay	80 kA
4S U adkaysiga Muddada Gaaban ee Hadda	31.5 kA
Wareegtada Hawlgalka ee la qiimeeyay	Fur–0.3s–Xid/Fura–180-meeyadii–Xid/Furan–180aad–Xid/Fur–60s–Soo Celinta
Lagu Qiimeeyay Hawlgallada Jebinta Wareegga Gaaban	30 jeer
Nolosha Makaanikada	20,000 jeer
Korantada Xakamaynta Mechanism Magnet Joogta ah	DC220V
Wareegga Labaad 1-daqiiqo Koronto-Soo noqnoqoshada U Adkeysiga Tijaabada Voltage	2 kV

Halbeegyada Farsamada Weyn ee Wareegtada

Magaca Halbeegga	Xogta
Farqiga Xiriirka	18±1 mm
La xidhiidh Overtravel	4± 0.5 mm
Xawaaraha furitaanka	1.4-1.8m/s
Xawaaraha xidhitaanka	0.8-1.2m/s
Xidhiidhka Xiritaanka Bounce Time	<=5 ms
Waji-ilaa-weji Fogaanta Xarunta	560± 2 mm
Asynchrony Beddelashada Saddex- Waji	<=3 ms
Iska caabinta Loop-ka-Wajiga-ilaa-wejiga	µΩ
Waqtiga xidhitaanka	25-45 ms
Waqtiga Furitaanka	20-45 ms
Miisaanka	100 Kg

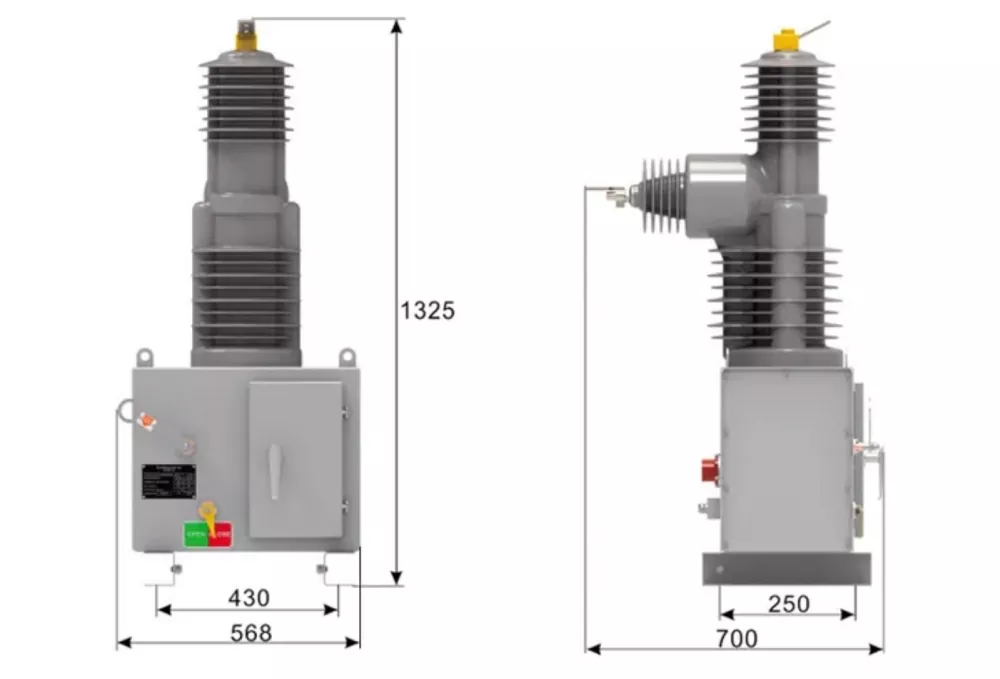

Muuqashada iyo Cabbirrada Koritaanka

33kV Single Pole Outdoor Circuit Breaker

Xaaladaha Shaqada

1. Heerkulka hawada deegaanka: -30°C ilaa +60°C;

2. Joog: Aan ka badnayn 2000 mitir;

3. Xawaaraha dabaysha: Aan ka badnayn 34 m/s;

4. Gariirka ama dhaqdhaqaaqa seismic ee ka imanaya meel ka baxsan qalabka wax lagu beddelo iyo qalabka xakamaynta waa mid dayacan;

5. Darajada wasakhowga: Heerka IV;

6. Heerkulka kaydinta: -40°C ilaa +85°C.
