Dibad-joogta Joogta ah ee Wareegga Magnet

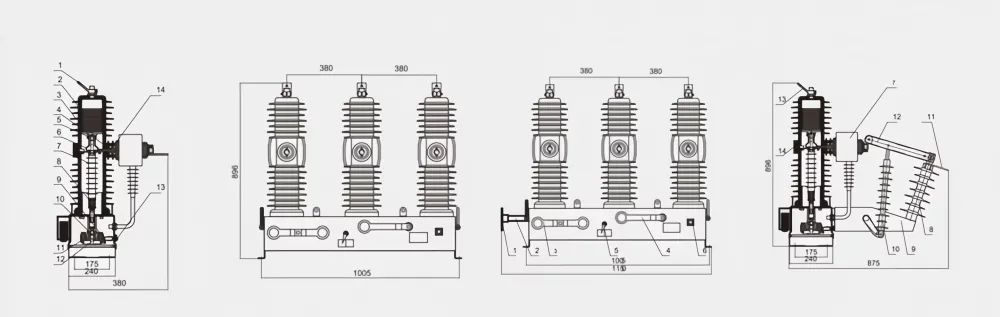

1-Upper outlet

2-Vacuum interrupter

3-tuubo dahaadh ah

4-Xariiqa bixista hoose

5-Clip wax-qabad

6-Xiriirka jilicsan

7-Usha Jiid ee dahaaran

8-La xidhiidh isha cadaadiska

9-Furitaanka guga

10- Board isku xirka darawalka

11-Mechanism-ka wax soo saarka

12-Hannaan hawleedka

13-sanduuqa hay’adaha

14-Transformer-ka hadda jira

1-hawlgelinta

2-Suxul go'doonsan

3- Gacan-ku-furid iyo gacan-ku-xidhid-jabiye-wareeg

4-Circuit breaker tamarta kaydinta tamarta

5-Awaamiirta kala-tagga iyo isku-dhafka

6-Filinka fiilada

7-Transformer-ka hadda jira

8-Insulator

9-Qosol

10-Usha muunada dahaadhka ah

11-Terminal block (dhinaca wax soo galinta)

12-Daab gooni ah

13-Terminal block (dhamaadka wax soo saarka)

14- jabiye

Magaca Mashruuca

Qiimaha cabbirka

danab lagu qiimeeyay

12/24kV

Inta jeer ee la qiimeeyay

50Hz

Hadda la qiimeeyay

630/1250A

Lagu qiimeeyay qulqulka wareega-gaaban

20/25kA

Heerka ugu sarreeya ee u adkeysanaya hadda (qiimaha ugu sarreeya)

50/63kA

Lagu qiimeeyay wareegga-gaaban taasoo samaynaysa qiimaha ugu sarreeya hadda

50/63kA

Sida loo shaqeeyo

0-0.3s-CO-180s-CO

Nolosha makaanikada

10,000 jeer

Lagu qiimeeyay jabinta wareega gaaban ee hadda iyo tirada hawlgallada goynta

20 jeer

Inta jeer ee awoodda 1-daqiiqo u adkeysaneyso tijaabada korantada ee wareegga labaad

2kV

Hilaaca hillaaca u adkeysanaya qiimaha ugu sarreeya ee danab

125/145kA

Miisaanka

115kg
